DR-1204P

Out of stock

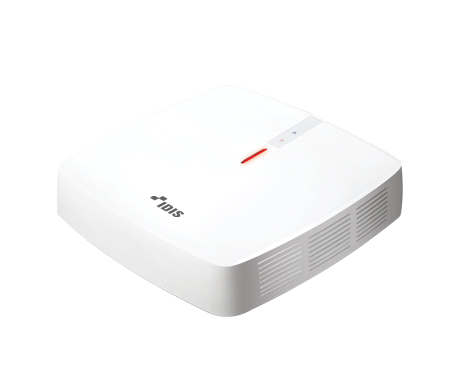

DirectIP™ 1200 Series 4channel Full HD Recorder

ㆍTotal incoming throughput 84Mbps
ㆍUp to 120ips Full HD real-time recording
ㆍUp to 120ips live display
ㆍEasy to install, set-up and play with DirectIP™ cameras
ㆍBuilt-in 4 channel PoE Switch
ㆍExpandable up to 6TB
ㆍSupports one click network configuration through FEN service

Compare product
Category: Tag:

Description

VIDEO
Video Inputs4 IP channels
Max. Incoming Throughput84Mbps
Supported Camera
Video Outputs1 HDMI, 1 VGA
Display Resolution1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 120ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput32Mbps, 120ips@Full HD
Recording ResolutionUp to 5MP (Depending on IP Camera)
CompressionH.264, H.264 with IDIS Intelligent Codec
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventsAlarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video loss, Text-in, ANPR, etc.
PLAYBACK
Performance4ch Full HD Synchronous Playback
Search ModeTime-lapse, Event log,Thumbnail, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x1 (Up to 6TB capacity for each disk)
Total Capacity6TB=6TB x 1
NETWORK
Client ConnectionFast Ethernet (Client) x1
Video in ConnectionFast Ethernet (IP Camera) x4
Transmission Speed20Mbps / 50Mbps (BRP Mode)
Camera PowerPoE (IEEE 802.3at class 4) supported 4 ports, 30W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter)
Two-way Audioyes
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ OutLocal(NVR) : – / 1 HDMI
IP Camera : 4 / 4 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : – / –
IP Camera : 4 / 4 (Depending on IP Camera)
Alarm Reset In
Serial Interface
USBUSB 2.0 x 2
User InterfaceMouse, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux
UNIT Dimensions (W x H x D)215mm x 45mm x 217mm (8.46” x 1.8” x 8.54”)
Unit Weight1.2kg (2.7lb) (with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputDC 56V 1.17A
Power Consumption39.2W (for NVR), Max. 30W (for PSE)
ApprovalsFCC, CE, KC

Additional information

Recorder / Camera: Compression

,

Recorder: Recording resolution

Recorder: Display resolution

, , ,

Recorder: Video inputs

Recorder: Video outputs

,

Recorder: Display Speed

Recorder: Max. Recording Throughput

Recorder: Max. Incoming Throughput

Downloads

Firmware
Latest Version
ManualNLENFR
Quicksheet
Quick Guide
Installation Manual
Operating Manual
DatasheetNLENFR
Version 7.0
A&E specificationsNLENFR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

DR-1204P afmetingen
