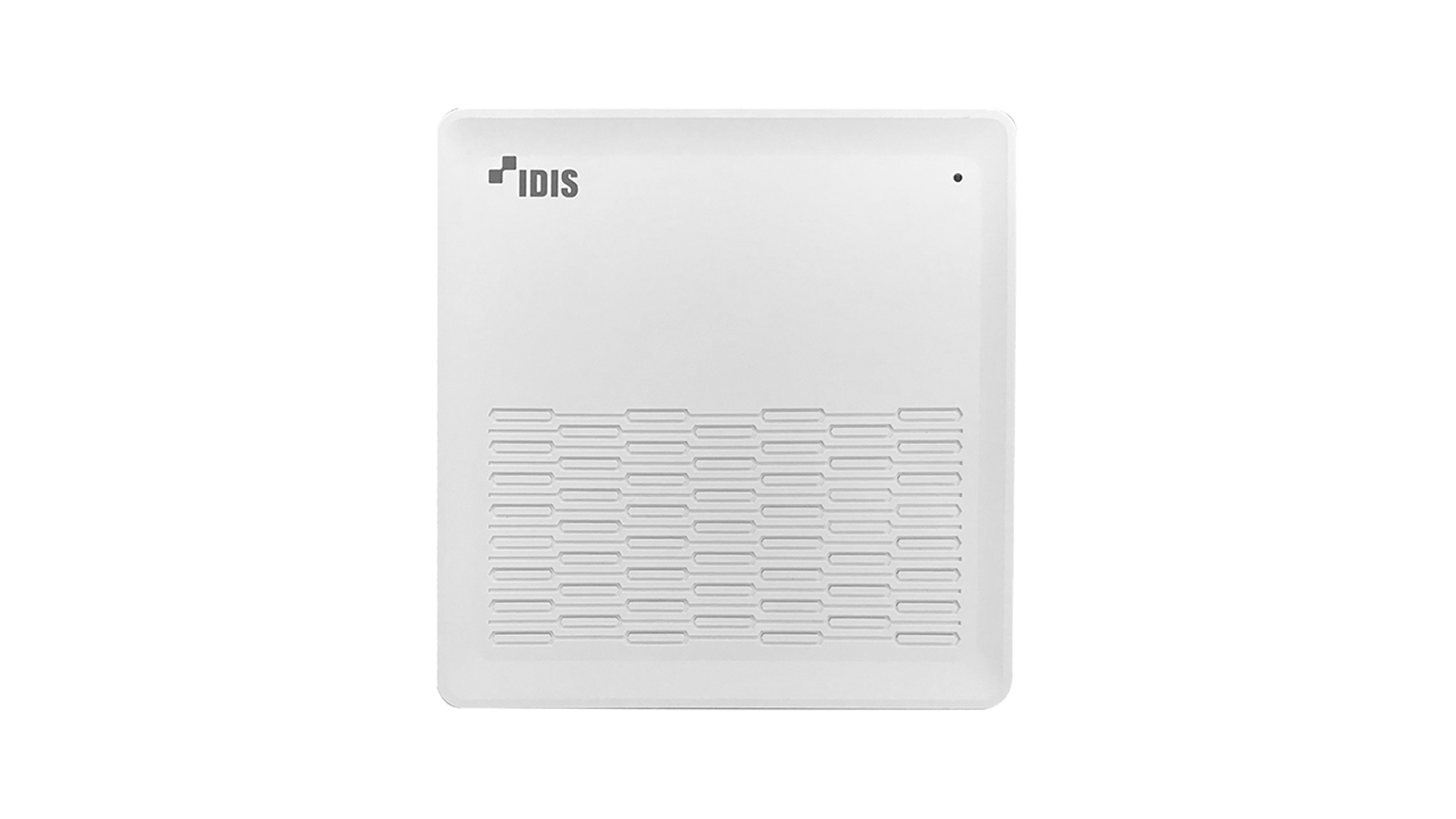

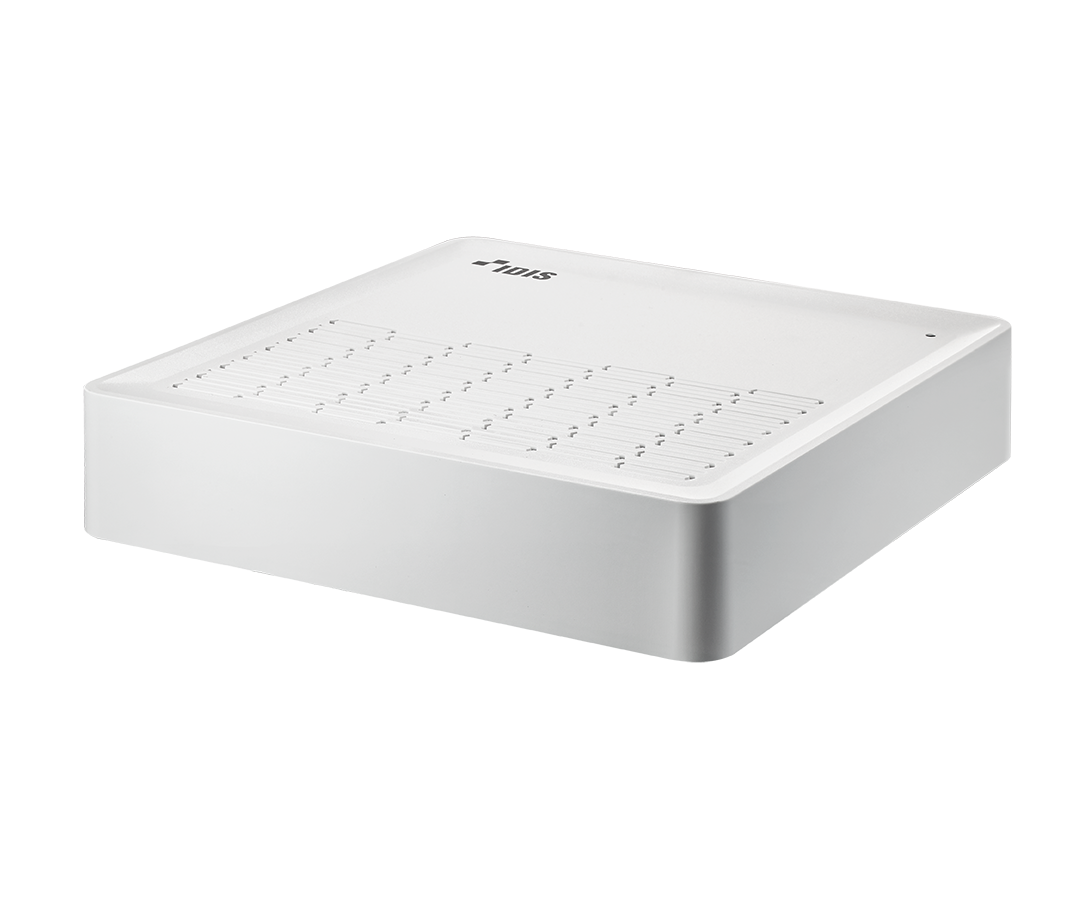

DirectIP™ 4channel Full HD Recorder
• Total incoming throughput 60Mbps
• Up to 120ips 8MP real-time recording
• Up to 120ips live display
• Easy to install, set-up and play with DirectIP™ cameras
• Built-in 4 channel PoE Switch
• Supports one click network configuration through FEN service
• NDAA Compliant
| VIDEO | |
| Video Inputs | 4 IP channels |
| Max. Incoming Throughput | 60Mbps |
| Supported Camera | DirectIP |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 120ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | – |
| RECORDING | |
| Max. Throughput | 20Mbps, 120ips@8MP |
| Recording Resolution | Up to 8MP (Depending on IP Camera) |
| Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Motion detection, Trip-zone, Tampering, Video loss, System, etc. |
| PLAYBACK | |
| Performance | 4ch Full HD Synchronous Playback |
| Search Mode | Time-lapse, Event log |
| Digital Zoom | x2 ~ x12 |
| STORAGE | |
| HDD | SATA x1 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. Check most recent information. |
| NETWORK | |
| Client Connection | Fast Ethernet (Client) x1 |
| Video in Connection | Fast Ethernet (IP Camera) x4 |
| Transmission Speed | 20Mbps |
| Camera Power | PoE (IEEE 802.3at class 4) supported 4 ports, 35W |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | No |
| Client Viewer | IDIS Center, IDIS Mobile (Plus), IDIS Web (web.idisglobal.com only), IDIS Solution Suite |
| INTERFACE | |
| Audio In/ Out | No |
| Alarm In / Out | No |
| Alarm Reset In | No |
| Serial Interface | No |
| USB | USB 2.0 x 2 |
| User Interface | Mouse |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 205mm x 44.5mm x 216.4mm (8.07″ x 1.75″ x 8.52″) |
| Unit Weight | 1.2kg (2.65lb) (with 1 HDD) |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Consumption | NVR: 48V, 1A, Max. 48W |
| Approvals | FCC, CE, KC |
