Out of stock
Full HD Covert Modular Camera
ㆍEasy installation with DirectIP NVR
ㆍFull HD (1080p) resolution
ㆍFixed-focal Board Type lens(f=2.5 mm)
ㆍMicro SD/SDHC/SDXC
ㆍTwo-way audio
ㆍAlarm in / out
ㆍPoE(IEEE 802.3at class 4), 12V DC
ㆍDay&night (ICR)
ㆍTrue Wide Dynamic Range (WDR)
ㆍSupports ONVIF
| Video | |
| Image Sensor | 1/2.9″ SONY CMOS Sensor |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal Board Type |
| Focal Length | f=2.5mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 132º(H), 70º(V), 150º(D) |
| Pan/Tilt/Zoom | – |
| Min. Illumination | Color : 0.1 lux B/W : 0.01 lux |
| S/N Ratio | More than 45dB |
| Dynamic Range | 120 dB (True WDR) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | – |
| Image Setting | Brightness, White Balance, Sharpness |
| Digital Noise Reduction | Low / Normal / High |
| Backlight Compensation | OFF / BLC / HLC / WDR |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP™ Mode : DirectIP |
| Compatibility Mode : IDIS ONVIF Profile S |
|
| Max. Frame Rate | DirectIP™ Mode : 30ips : 1920 x 1080 15ips : 1920 x 1080 (WDR) |
| Compatibility Mode : 30ips : 1920 x 1080 15ips : 1920 x 1080 (WDR) |
|
| Supports Resolution | DirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 |
| Compatibility Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 | |
| Multi-video Streaming | DirectIP™ Mode : Quadruple Streaming |
| Compatibility Mode : Quadruple Streaming | |
| Network Protocols | DirectIP™ Mode : DirectIP Protocol |
| Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
|
| Security | DirectIP™ Mode : SSL Encryption |
| Compatibility Mode : Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
|
| Remote Access Client | DirectIP™ Mode : DirectIP NVR Connection |
| Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite | |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 128GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | Line-in 1ea / Line-out 1ea (Terminal Block) |
| Alarm In / Out | Input 1ea / Output 1ea (Terminal Block) |
| Environmental | |
| Vandal Proof Casing | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ +50°C (14°F ~ +122°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3at Class 4) |
| Power Consumption | 4.08W |
| Approval | FCC, CE, KC |
| Mechanical | |

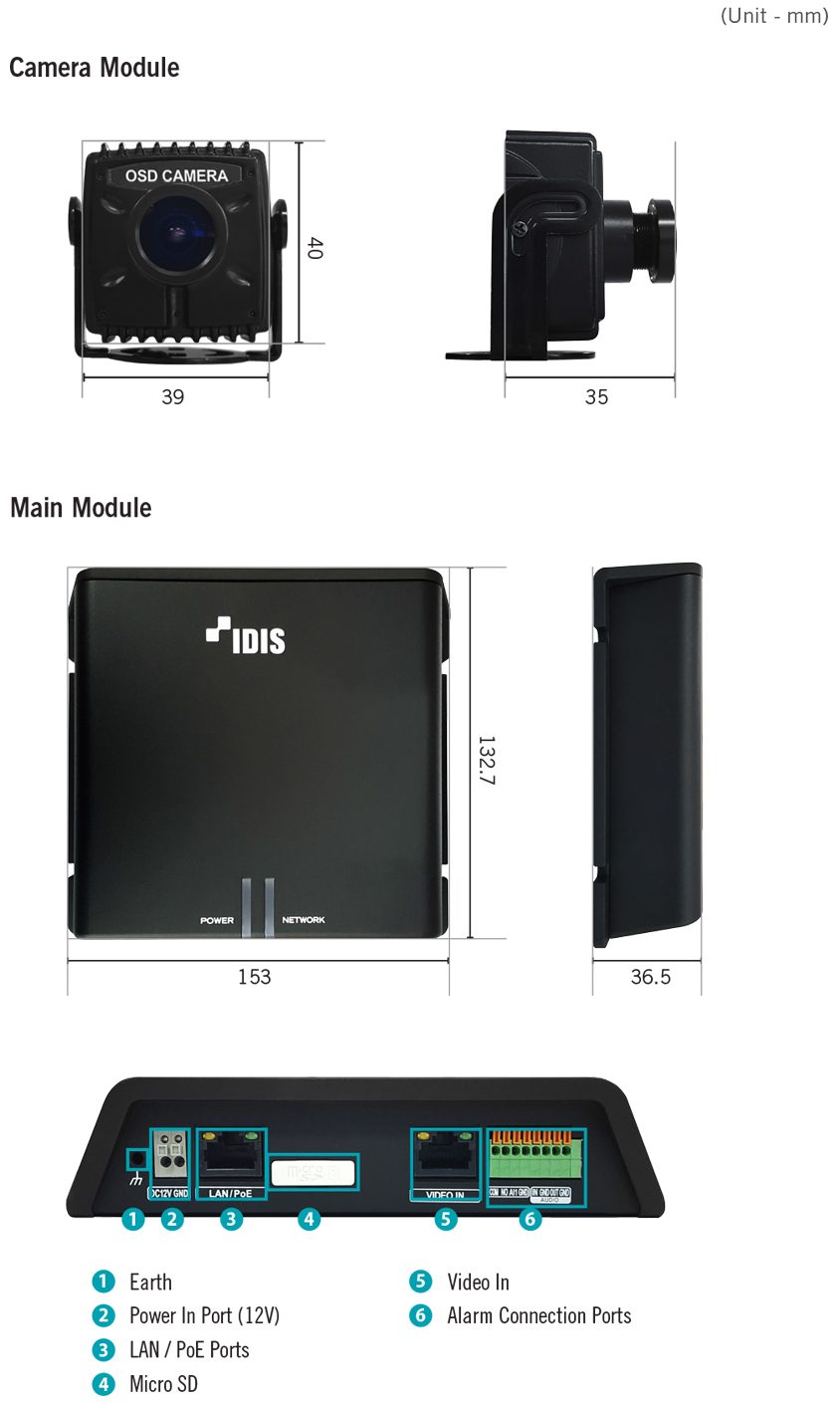

| Dimensions camera (W x H x D) | 39mm x 40mm x 35mm (1,53″ x 1,57″ x 1,37″) |
| Dimensions unit (W x H x D) | 153mm x 36,5mm x 132,7mm |
| Weight | 0,9 kg |
