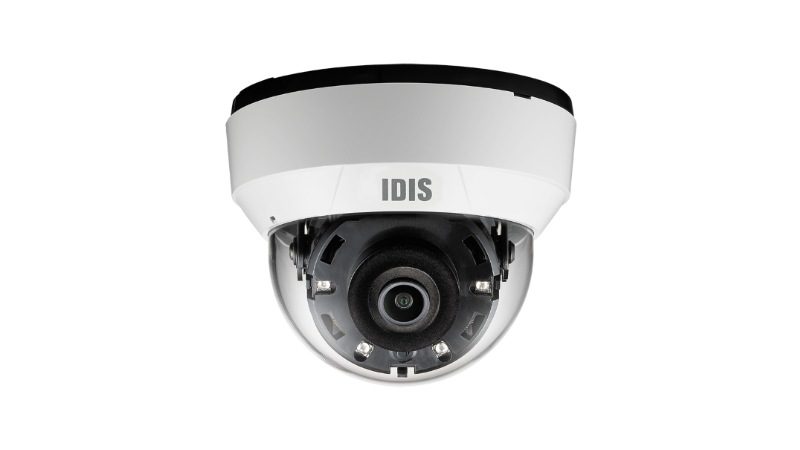

Full HD IR Dome Camera
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens type | Fixed-focal |
| Focal Length | f=2.8mm / 4.0mm |
| Aperture | F2.0 (f=2.8mm) / F2.15 (f=4.0mm) |
| Iris Control | Fixed Iris |
| Angular Field of View | 113.7º(H), 61.5º(V), 134.5º(D) (f=2.8mm) 87º(H), 44º(V), 106º(D) (f=4.0mm) |
| Pan/Tilt Range | Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109° |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED on) |
| Dynamic Range | 120dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter( 1 ~1/5, 1/7.5, 1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 20m (4ea) (f=2.8mm) 20m (ea2) (f=4.0mm) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction | Configurable 2DNR/3DNR |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| De-fog | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.264(MP), M-JPEG, H.265 |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR/ VBR, H.265 – CBR / VBR |
| Max. Frame Rate | DirectIP™ Mode : 30ips : 1920 x 1080 (WDR) |
| Compatibility Mode : 30ips : 1920 x 1080 (WDR) | |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP™ Mode : DirectIP |
| Compatibility Mode : IDIS ONVIF | |
| Supports Resolution | DirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 |
| Compatibility Mode : 1920×1080, 1280×720, 704×480, 352×240 | |
| Multi-Video Streaming | DirectIP™ Mode : Quadruple streaming |
| Compatibility Mode : Quadruple streaming | |
| Network Protocols | DirectIP™ Mode : Direct IP Protocol |
| Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP | |
| Security | DirectIP™ Mode : SSL Encryption |
| Compatibility Mode : Multi-User Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption | |
| Remote Access Client | DirectIP™ Mode : Off / on |
| Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite | |
| Ethernet | RJ45(10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm & Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, TripZone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In / Out | 1 (built mic)+ 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Resistance | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE(IEEE 802.3af class 2) |
| Power Consumption | PoE: IEEE 802.3af (Class 2), 4.8W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø110mm x 88mm |
| Weight | 0.25 kg |
