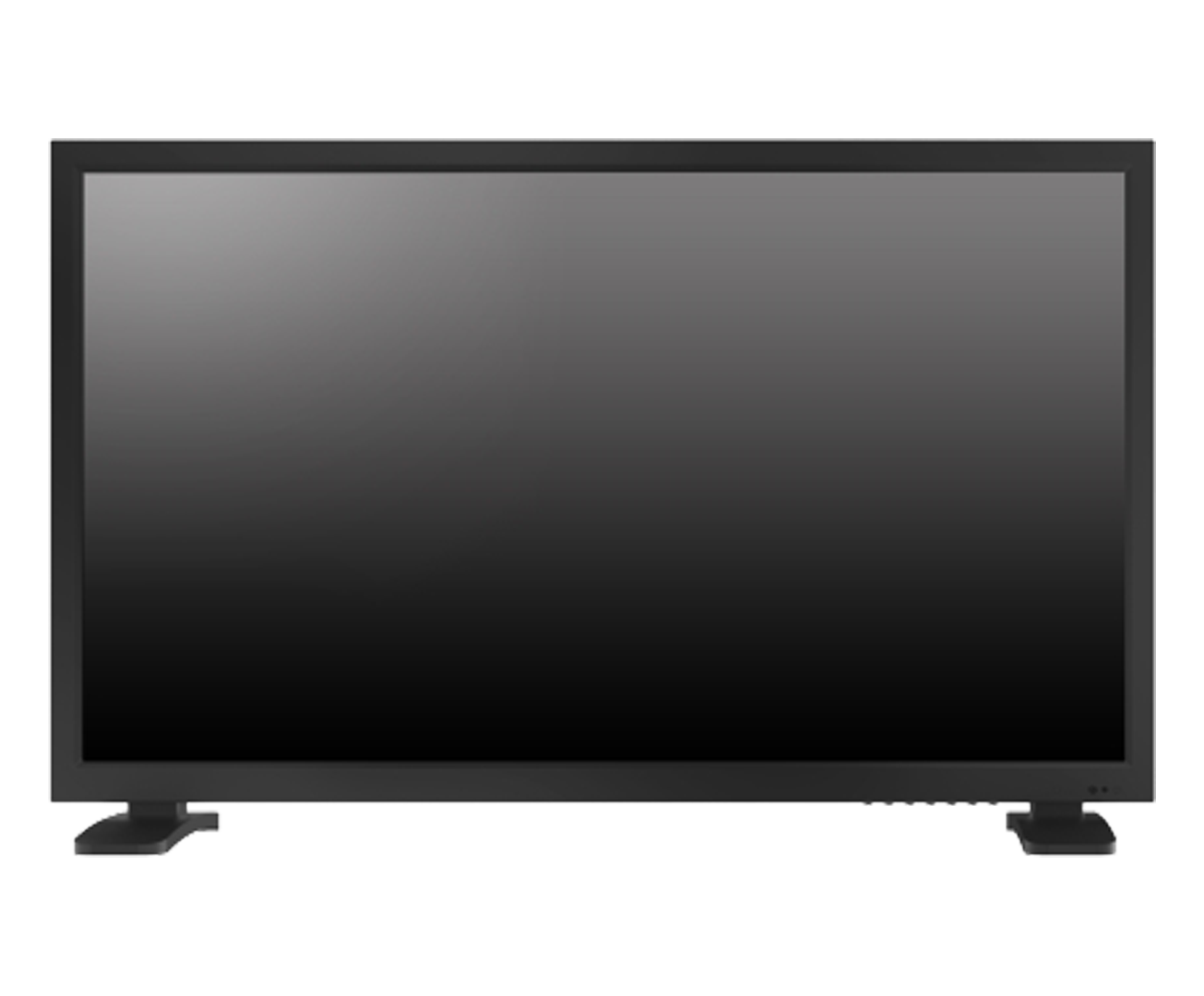

32″ Full HD Standard Monitor
ㆍFull HD resolution (1920 x 1080)
ㆍ16:9 LED screen
ㆍHybrid (AHD,TVI,CVI,CVBS)
ㆍHDMI In
ㆍVGA
ㆍAudio In/Out
ㆍBNC Video In/Out
ㆍUSB
SM-F322
Out of stock
Description
| Panel | |
| Type | LED |
| Screen Size | 32 Inch |
| Active Display Area | 698.40mm(H) x 392.85mm(V) |
| Max. Resolution | 1920 x 1080 @ 60Hz |
| Panel Technology | IPS(In-Plane Switching) |
| Pixel Pitch | 0.36375mm(H) x 0.36375mm(V) |
| Brightness | 250cd/m² |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle(H/V) | 178°/178° |
| Display Color | 16.7 Millions |
| H-Scanning Frequency | 30~80Khz |
| V-Scanning Frequency | 50~75Khz |
| Response Time (G2G) | <6.5ms |
| Panel Life Time | 50,000Hours |
| Interface | |
| Hybrid (AHD,TVI,CVI,CVBS) In/Out | 1/1 |
| HDMI In | 1 |
| Display Port | – |
| VGA Input | 1 |
| DVI Input | – |
| Audio In/Out | 1/1 |
| BNC Video In/Out | 1/1 |
| S-Video In/Out | – |
| Component Y/pb/Pr In | – |
| S/PIDF Output | – |
| RS232 In/Out | – |
| USB | 1 |
| GENERAL | |
| Outline Dimension(WxHXD) | 741.2mmx472.9mmx180.0 mm (29.18″x18.62″x7.09″) |
| Bezel width (Spec. for VideoWall) | – |
| Net Weight/Gross Weight | 12.5Kg(27.56lb)/15.6Kg(34.4lb) |
| Material/Color | Metal / Black |
| Warranty-Parts/Labor | 3 Year / 3 Year |
| MTBF | 50,000 Hours(Panel) |
| Power Supply | AC100~240V(50/60Hz) |
| Power Consumption – Typical | 50W |
| Power Consumption – Stand by | <0.5W |
| Power Savings(DPMS) | Yes |
| Operating Temperature | -10°~50°C(14°F~122°F) |
| Storage Temperature | -20°~60°C(-4°F~140°F) |
| Built-In Speaker | Yes(5Wx2) |
| Remote Control | Yes |
| VESA Mount Size | 200mm x 200mm / M6 x 10 Screws |
| EXTERNAL CONTROLS | |
| IR Sensor(For Remote Control) | Built-In |
| Serial In/Out | – |
| USB | For Firmware Update |
Additional information
| Monitor: Interface | Hybride (AHD,TVI,CVI,CVBS), USB, Audio input, Audio output, BNC Video In, BNC Video Out, HDMI, VGA |
|---|---|
| Monitor: Resolution | |
| Monitor: Screen size |
Downloads
| Manual | NL | EN | FR |
| Installation Manual | | | |
| Datasheet | NL | EN | FR |
| Version 8.3 | | | |
| BIM | |||
| Building Information Model | | ||
