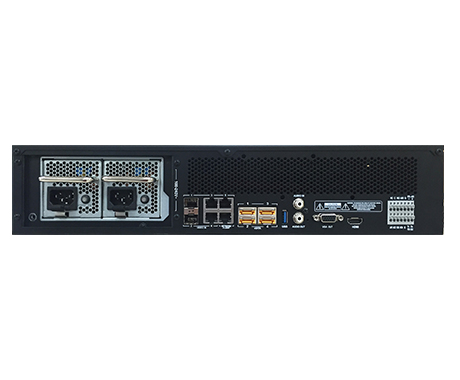

DR-8364D

DirectIP™ 8300 Series 64channel 4K Recorder

ㆍTotal incoming throughput 900Mbps
ㆍUp to 1920ips Full HD real -time recording
ㆍSupports H.265 / H.264 codec
ㆍSupports UHD display
ㆍUp to 1920ips live display
ㆍEasy to install, set-up and play with DirectIP™ cameras
ㆍExpandable up to 144TB using eSATA storage
ㆍSupports RAID 1, 5, 10
ㆍEquipped with redundant power supply
ㆍSupports one click network configuration through FEN service
ㆍSupports third party cameras (Axis, Panasonic, ONVIF™ )

Compare product
Category:

Description

VIDEO
Video Inputs 64 IP channels
Max. Incoming Throughput 900Mbps
Supported Camera DirectIP™, AXIS, PANASONIC, ONVIF™
Video Outputs 1 HDMI, 1 VGA
Display Resolution 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display Speed Up to 1920ips
Digital Zoom x2 ~ x12
RECORDING
Max. Throughput 400Mbps, 1920ips@Full HD
Recording Resolution Up to 8MP (Depending on IP Camera)
Compression H.264, H.265
Recording Mode Time-Lapse, Event, Pre-Event, Panic
Trigger Events Alarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video loss
PLAYBACK
Performance 16ch Full HD synchronous playback
4ch 4K playback
Search Mode Time-lapse, Event log,Thumbnail, Motion, Text-in
Digital Zoom x2 ~ x12
STORAGE
HDD SATA x 8, eSATA x4,(Up to 6TB capacity for each disk), RAID 1, 5, 10 supported
Total Capacity 144TB=6TB x (8(Internal) 4×4(External))
NETWORK
Client Connection Gigabit Ethernet(Client) x1
Video in Connection Gigabit Ethernet(Video In) x3, SFP(Video In ) x 2
Transmission Speed 400Mbps / 500Mbps(BRP Mode)
Camera Power
Remote Data Export IDIS Player, AVI, JPG
Event Notification Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter)
Two-way Audio yes
Client Viewer IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ Out Local(NVR) : 1 RCA / 1RCA 1HDMI
IP Camera : 64 / 64 (Depending on IP Camera)
Alarm In / Out Local(NVR) : 4 / 1
IP Camera : 64 / 64 (Depending on IP Camera)
Alarm Reset In 1
Serial Interface RS232 (Terminal Block), RS485 (Terminal Block)
USB USB 2.0 x 2, USB 3.0 x 1
User Interface Mouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating System Embedded Linux
UNIT Dimensions (W x H x D) 482.6mm x 88mm x 523.3 mm (19″ x 3.5″ x 20.6″)
Unit Weight 9.9kg (21.8lb) (without HDD)
Working Temperature 0°C to 40°C
Operating Humidity 0% ~ 90%
Power Input AC 100-240 V, 50/60Hz, 2.0 – 1A
Power Consumption 120W (With 8 HDDs)(Redundant Power)
Approvals FCC, UL, CE, CB, KC, PSE

Additional information

Recorder: Video inputs

Recorder: Video outputs

,

Recorder: Display resolution

, , , ,

Recorder: Recording resolution

Recorder / Camera: Compression

,

Recorder: Max. Recording Throughput

Recorder: Max. Incoming Throughput

Recorder: Display Speed

Downloads

Firmware
Latest Version
Manual NL EN FR
Quicksheet
Quick Guide
Installation Manual
Operating Manual
Datasheet NL EN FR
Datasheet
A&E specifications NL EN FR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

DR-8364D afmetingen
