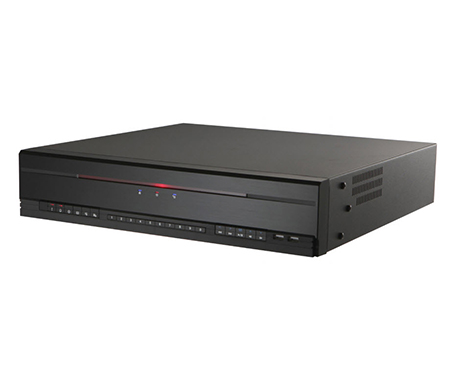

DR-6332PS

Out of stock

DirectIP™ 6300 Series H.265 4K Recorder

ㆍTotal incoming throughput 370Mbps
ㆍUp to 960ips UHD real-time recording
ㆍSupports H.265 / H.264 codec
ㆍSupports UHD display
ㆍUp to 960ips live display
ㆍEasy to install, set-up and play with DirectIP™ cameras
ㆍBuilt-in 16 channel PoE Switch and expandable up to 32 Channel using DirectIP™ Gigabit PoE Switch
ㆍExpandable up to 176TB using eSATA storage
ㆍSupports RAID 1
ㆍSupports one click network configuration through FEN service
ㆍSupports third party cameras (Axis, Panasonic, ONVIF™ )

Compare product
Category: Tags: ,

Description

VIDEO
Video Inputs 32 IP channels
Max. Incoming Throughput 370Mbps
Supported Camera DirectIP™, AXIS, PANASONIC, ONVIF™
Video Outputs 1 HDMI, 1 VGA
Display Resolution 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display Speed Up to 960ips
Digital Zoom x2 ~ x12
RECORDING
Max.Throughput 230Mbps, 960ips@4K (UHD)
Recording Resolution Up to 12MP (Depending on IP Camera)
Compression H.264, H.265
Recording Mode Time-Lapse, Event, Pre-Event, Panic
Trigger Events Alarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video loss, Text-in, ANPR, etc.
PLAYBACK
Performance 16ch Full HD synchronous playback
4ch 4K playback
Search Mode Time-lapse, Event log,Thumbnail, Motion, Text-in
Digital Zoom x2 ~ x12
STORAGE
HDD SATA x6, eSATA x4,(Up to 8TB capacity for each disk), RAID 1 supported
Total Capacity 176TB=8TB x (6(Internal) 4×4(External))
NETWORK
Client Connection Gigabit Ethernet(Client) x1
Video in Connection Gigabit Ethernet(IP Camera) x16 Gigabit Ethernet(Ext) x1
Transmission Speed 50Mbps / 100Mbps(BRP Mode)
Camera Power PoE(IEEE 802.3at class 4) supported 16 ports, 120W
Remote Data Export IDIS Player, AVI, JPG
Event Notification Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile)
Two-way Audio Yes
Client Viewer IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/Out Local(NVR) : 1 RCA / 1RCA + 1HDMI
IP Camera : 32 / 32 (Depending on IP Camera)
Alarm In/Out Local(NVR) : 4 / 1
IP Camera : 32 / 32 (Depending on IP Camera)
Alarm Reset In 1
Serial Interface RS232 (Terminal Block), RS485 (Terminal Block)
USB USB 2.0 x 1, USB 3.0 x 1
User Interface Front Buttons, Mouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating System Embedded Linux
UNIT Dimensions (W x H x D) 430mm x 88mm x 410.8 mm (16.9″ x 3.5″ x 16.2″)
Unit Weight 6.0kg (13.2lb) (with 1 HDD)
Working Temperature 0°C to 40°C (32℉ ~ 104℉)
Operating Humidity 0% ~ 90%
Power Input AC 100-240 V, 50/60Hz, 3.0 – 1.5A
Power Consumption Max. 200W (with 6 HDDs)
Approvals FCC, UL, CE, CB, KC
