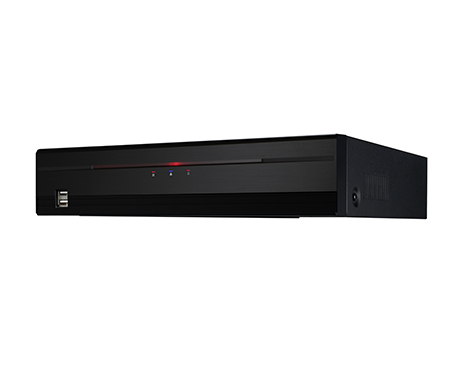

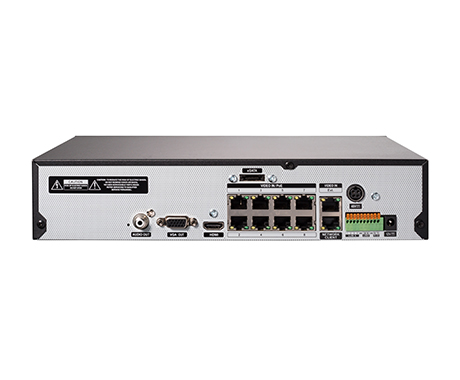

DR-2316P

DirectIP™ 2300 Series H.265 4K Recorder

ㆍTotal incoming throughput 320Mbps
ㆍUp to 480ips UHD real-time recording
ㆍSupports H.265 / H.264 codec
ㆍSupports UHD display
ㆍUp to 480ips live display
ㆍEasy to install, set-up and play with DirectIP™ cameras
ㆍBuilt-in 8 channel PoE Switch
ㆍSupports one click network configuration through FEN service
ㆍSupports third party cameras (Axis, Panasonic, ONVIF™ )

Compare product
Category:

Description

VIDEO
Video Inputs16 IP channels
Max. Incoming Throughput320Mbps
Supported CameraDirectIP™, AXIS, PANASONIC, ONVIF™
Video Outputs1 HDMI, 1 VGA
Display Resolution3840 x 2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 480ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput180Mbps, 480ips@4K(UHD)
Recording ResolutionUp to 12MP (Depending on IP Camera)
CompressionH.265, H.264
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventsAlarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video loss, Text-in, ANPR, etc.
PLAYBACK
Performance16ch Full HD synchronous playback
4ch 4K playback
Search ModeTime-lapse, Event log,Thumbnail, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x2, eSATA x1,(Up to 8TB capacity for each disk)
Total Capacity48TB=8TB x (2 + 1×4)
NETWORK
Client ConnectionGigabit Ethernet(Client) x1
Video in ConnectionFast Ethernet(IP Camera) x8 + Gigabit Ethernet(Ext) x1
Transmission Speed50Mbps / 100Mbps(BRP Mode)
Camera PowerPoE(IEEE 802.3at class 4) supported 8 ports, 50W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile)
Two-way AudioYes
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ OutLocal(NVR) : – / 1RCA 1HDMI
IP Camera : 16 / 16 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : 4 / 1
IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In
Serial InterfaceRS232 (Terminal Block)
USBUSB 2.0 x 1, USB 3.0 x 1
User InterfaceMouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux
UNIT Dimensions (W x H x D)300mm x 62mm x 231 mm (11.8″ x 2.4″ x 9.1″)
Unit Weight2.3kg (5.1lb) (with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputDC 12V 1.76A (for NVR), DC48V 1.1A(for PSE)
Power ConsumptionMax. 21.12W (for NVR), Max. 52.8W (for PSE)
ApprovalsFCC, CE, KC
