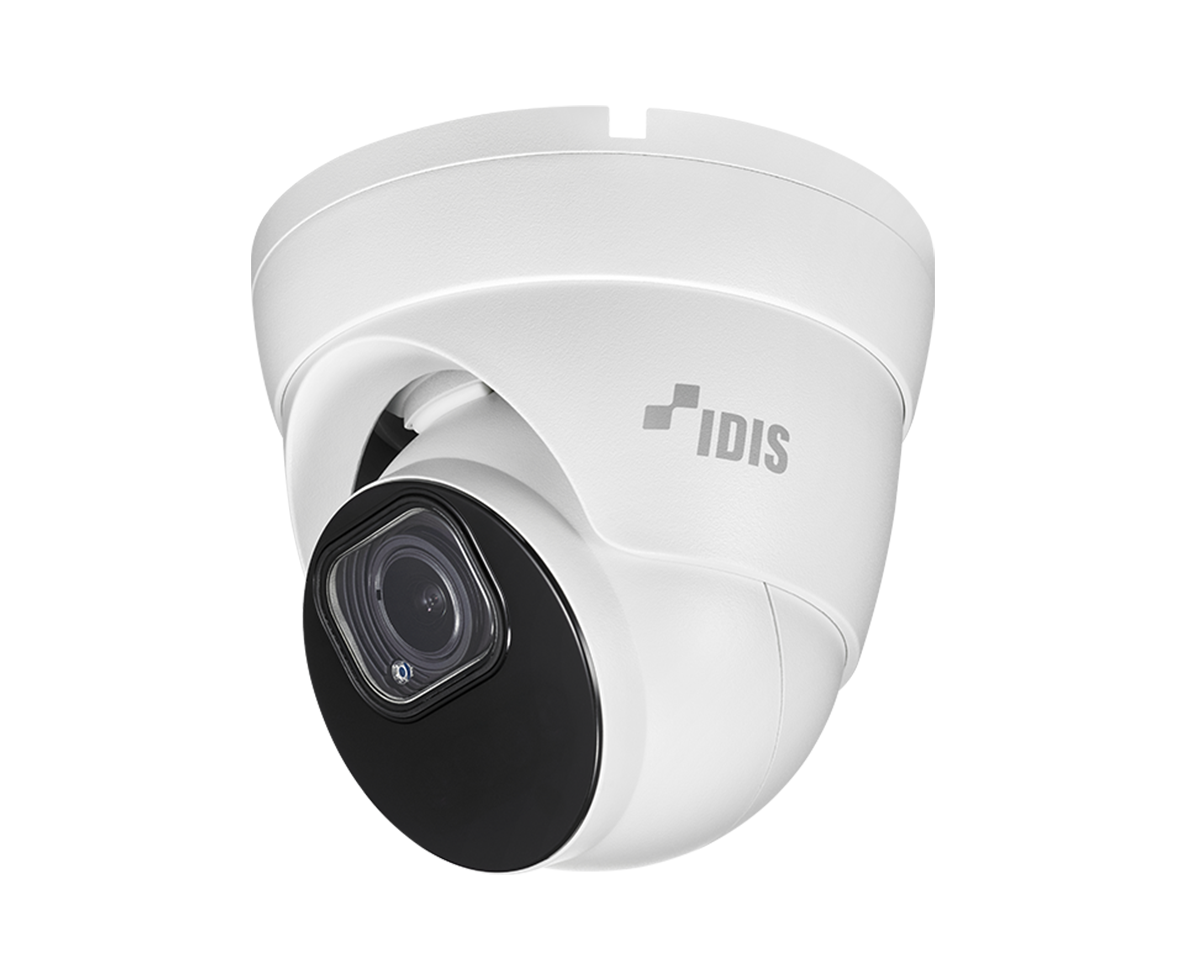

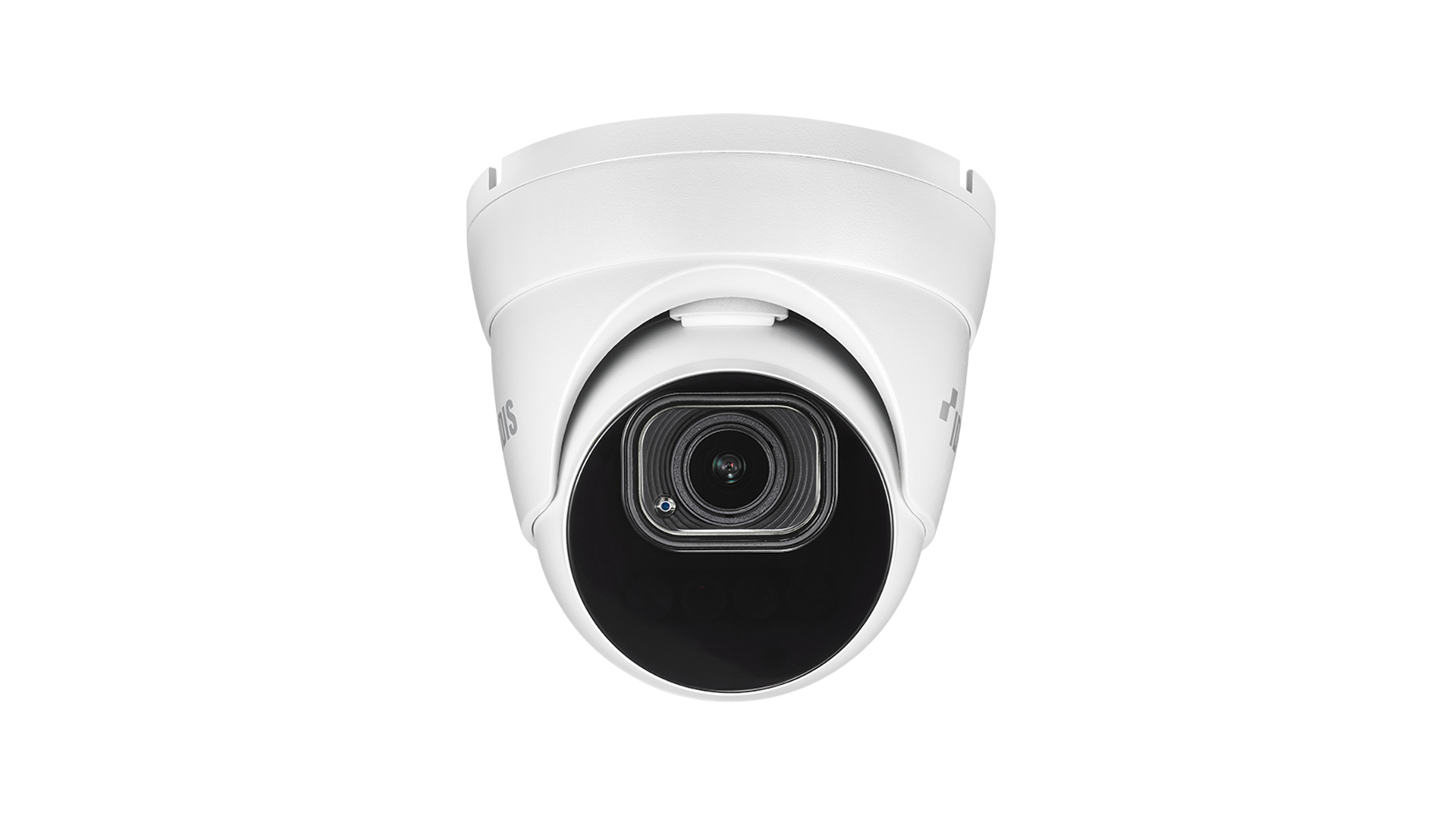

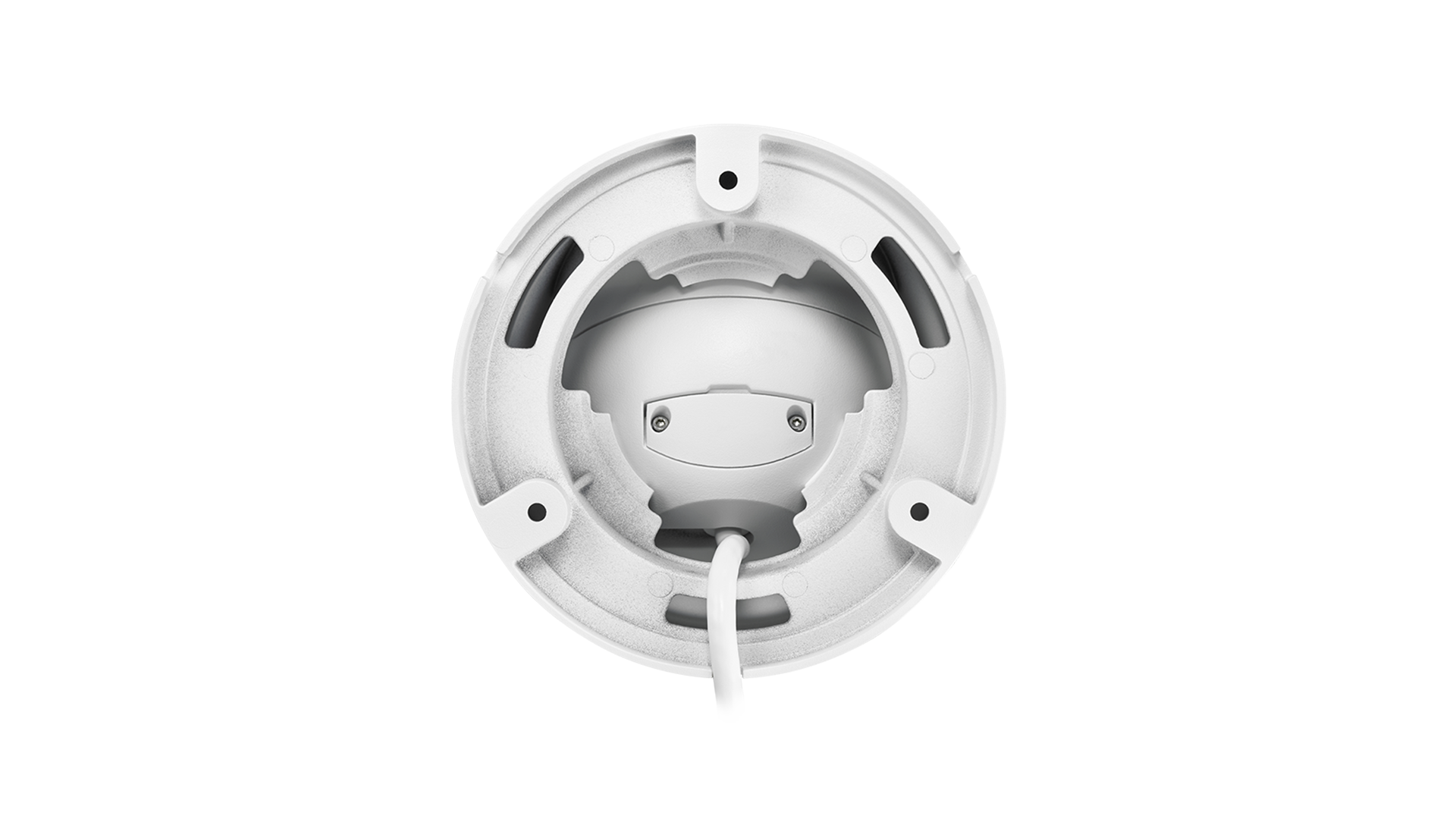

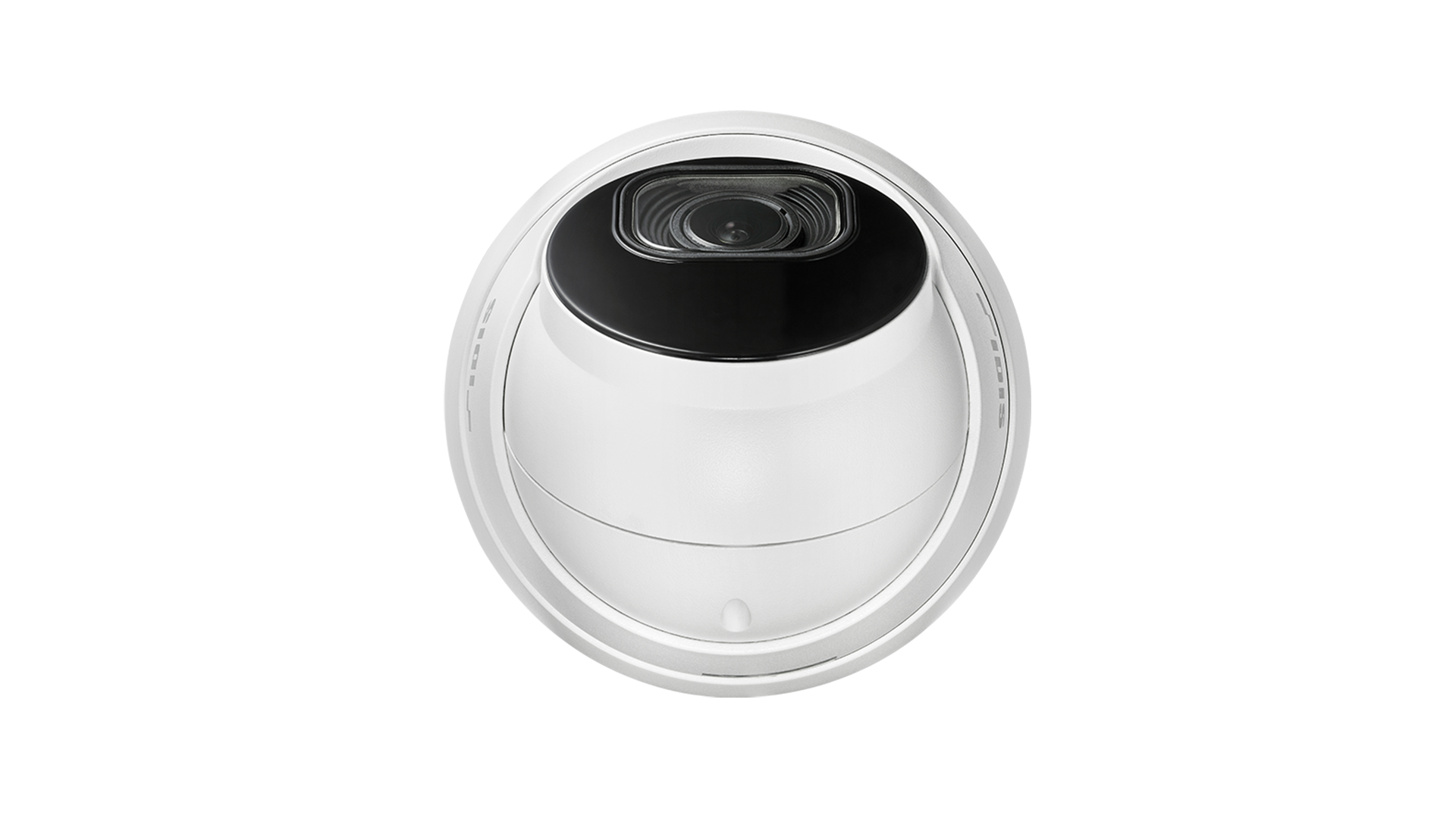

5MP IR Turret Camera
Alternative:
Description
| Video | |
| Image Sensor | 1/2.7″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens type | Motorized Vari-focal |
| Focal Length | f=2.7-12mm |
| Aperture | F1.83 – 3.32 |
| Iris Control | DC Iris |
| Angular Field of View | 99º (H) 72º(V) 131º(D) |
| Pan/Tilt Range | Bracket: Pan 0-360°; Lens: Pan 0-360°, Tilt: 0-80° |
| Min. Illumination | COLOR : 0.05 lux @ F1.2 (AGC on) B/W : 0 lux (IR LED on) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | 1/5 ~ 1/20000s, Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 45m (4ea) |
| Video Out | – |
| Network | |
| Video Compression | H.264(MP), H.265 |
| Intelligent Codec | – |
| Bitrate Control | CBR / VBR |
| Audio Compression | G711A (G.711 a-Law), G711U (G.711 u-Law), ADPCM 16K, G726 |
| Two-way Audio | Yes |
| IP Camera Protocol | ONVIF |
| Max. Frame Rate | 30ips : 2592 x 1944(WDR) |
| Supports Resolution | 2592×1944, 2592×1520, 2304×1296, 1920×1080, 1280×960, 1280×720 |
| Multi-Video Streaming | Triple streaming |
| Ethernet | RJ45(10/100BASE-T) |
| Edge Storage (optional) | Micro SD/SDHC/SDXC (class 6 or higher, max. 256GB) |
| Alarm & Event | |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Resistance | – |
| Outdoor Ready | IP66 |
| Operating Temperature | -30°C ~ 55°C ( -22°F ~ 131°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | DC 12V, PoE(IEEE 802.3af Class 3) |
| Power Consumption | Max. 9W |
| Approval | FCC, CE |
| Mechanical | |
| Dimensions (Ø x H) | Ø135.6mm x 127mm |
| Weight | 0.84 kg |
Additional information
| Camera: Aperture | |
|---|---|
| Camera: BLC / WDR | |
| Recorder / Camera: Compression | |
| Camera: Day & Night | |
| Camera: Focal length | |
| Camera: IR distance | |
| Camera: Lens type | |
| Camera: Maximum resolution | |
| Camera: Outdoor | |
| Camera: Mounting |
Downloads
| Firmware | |||
| Latest Version | | ||
| Software | |||
| Device Config Tool | | ||
| Manual | NL | EN | FR |
| Quick Guide | | | |
| Installation Manual | | | |
| Operation Manual | | | |
| Configuration Guide | | | |
| Datasheet | NL | EN | FR |
| Latest Version | | | |
| A&E specifications | NL | EN | FR |
| Architectural and Engineering Specifications | | | |
| BIM | |||
| Building Information Model | | ||
Dimensions
