Video |
Image Sensor | 1/3″ CMOS |
Max. Resolution | 1920 x 1080 |
Scanning Mode | Progressive Scan |
Lens type | Fixed focal |
Focal Length | f=2.8 |
Aperture | F=1.8 |
Iris Control | Fixed Iris |
Angular Field of View | Wide : 110.7º(H), 61.2º(V), 128.6º(D) |
Pan/Tilt Range | Pan: -180° ~ 176°, Tilt: 0° ~ 65° |
Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED on) |
S/N Ratio | |
Dynamic Range | 120dB (True WDR) |
Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter(1/7.5, 1/15) |
Day & Night | IR cut filter with auto switch |
IR Distance (LEDs) | – |
Image Setting | Configurable Exposure, White Balance, Sharpness |
Digital Noise Reduction | Configurable 3DNR |
Backlight Compensation | On / Off / HSBLC |
Mirroring / Pivot | Horizontal / Vertical / Pivot |
Image Stabilizer | – |
De-fog | On / Off |
Privacy Masking | 8 Zones |
Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
Video Out | 1 BNC(Accessory) |
Network |
Video Compression | H.264(MP), M-JPEG, H.265 |
Intelligent Codec | Supported |
Bitrate Control | H.264 – CBR/ VBR, H.265 – CBR / VBR |
Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
Two-way Audio | |
IP Camera Protocol | DirectIP™ Mode : DirectIP |
| Compatibility Mode : IDIS ONVIF Profile S |
Max. Frame Rate | DirectIP™ Mode : 30ips : 1920 x 1080(WDR) |
| Compatibility Mode : 30ips : 1920 x 1080(WDR) |
Supports Resolution | DirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 |
| Compatibility Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 |
Multi-Video Streaming | DirectIP™ Mode : Quadruple streaming |
| Compatibility Mode : Quadruple streaming |
Network Protocols | DirectIP™ Mode : Direct IP Protocol |
| Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
Security | DirectIP™ Mode : SSL Encryption |
| Compatibility Mode : Multi-User Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
Remote Access Client | DirectIP™ Mode : DirectIP™ NVR connection |
| Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite |
Ethernet | RJ45(10/100BASE-T) |
Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 128GB) |
Alarm & Event |
Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, TripZone |
Event Notification | Remote S/W, Email (with Image) |
Audio In/ Out | Internal Mic 1ea |
Alarm In / Out | |
Environmental |
Vandal Resistance | – |
Outdoor Ready | – |
Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
Operating Humidity | 0% ~ 90% |
Electrical |
Power Source | 12VDC, PoE(IEEE 802.3af class 2) |
Power Consumption | 12V=, 0.47A, 5.64W PoE, IEEE 802.3af(Class 2) |
Approval | FCC, CE, KC |
Mechanical |

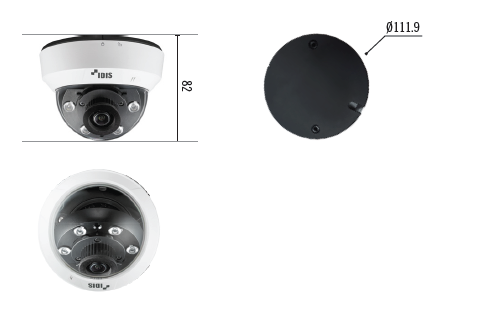

Dimensions (Ø x H) | Ø111.9mm x 82mm (Ø4.41″ x 3.23″) |
Weight | 0.25 kg |
