Out of stock

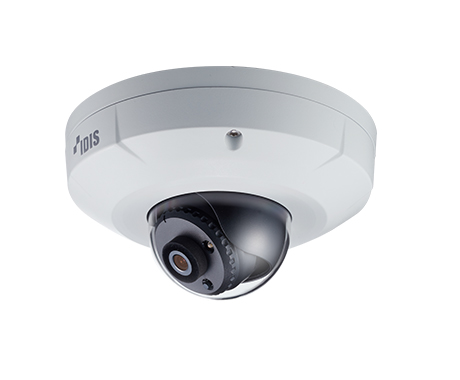

Full HD IR Dome Camera
ㆍEasy installation with DirectIP NVR
ㆍFull HD (1080p) resolution
ㆍFixed-focal lens(f=4.0mm)
ㆍmicro SD/SDHC
ㆍVandal proof/IP66 supports
ㆍPoE(IEEE 802.3af class 2), 12V DC
ㆍDay&night (ICR)
ㆍIR LED (Distance : 15m)
ㆍ3-axis mechanical design for installation
ㆍSupports ONVIF
| Video | |
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens type | Fixed-focal |
| Focal Length | f=4.0mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 84.4º(H), 50.3º(V), 104.6º(D) |
| Pan/Tilt Range | Pan: -180° ~ 174°, Tilt: 0° ~ 65° |
| Min. Illumination | COLOR : 0.2 lux F2.0 B/W : 0 lux (IR LED ON) |
| S/N Ratio | 31.2 dB |
| Dynamic Range | 74.7 dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter(1/7.5,1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 15 m (2 ea) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction | Configurable 2DNR |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Privacy Masking | 16 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 BNC(Accessory) |
| Network | |
| Video Compression | H.264(MP), M-JPEG |
| Intelligent Codec | – |
| Bitrate Control | H.264 – CBR / VBR |
| Audio Compression | – |
| Two-way Audio | – |
| IP Camera Protocol | DirectIP™ Mode : DirectIP |
| Compatibility Mode : IDIS ONVIF Profile S | |
| Max. Frame Rate | DirectIP™ Mode : 30ips : 1920 x 1080 |
| Compatibility Mode : 30ips : 1920 x 1080 | |
| Supports Resolution | DirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 |
| Compatibility Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 | |
| Multi-Video Streaming | DirectIP™ Mode : Quadruple streaming |
| Compatibility Mode : Triple streaming | |
| Network Protocols | DirectIP™ Mode : Direct IP Protocol |
| Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP | |
| Security | DirectIP™ Mode : SSL Encryption |
| Compatibility Mode : Multi-User Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption | |
| Remote Access Client | DirectIP™ Mode : DirectIP™ NVR connection |
| Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite | |
| Ethernet | RJ45(10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC, Smart Failover (Up to 32GB) |
| Alarm & Event | |
| Trigger Event | Motion Detection, Tampering, TripZone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | – |
| Alarm In / Out | – |
| Environmental | |
| Vandal Resistance | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE(IEEE 802.3af class 2) |
| Power Consumption | 3.96W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø155.1 x 86.2mm |
| Weight | 0.7 kg (1.54lb) |
| Camera: Aperture | |
|---|---|
| Camera: BLC / WDR | |
| Recorder / Camera: Compression | |
| Camera: Day & Night | |
| Camera: Focal length | |
| Camera: IR distance | |
| Camera: Lens type | |
| Camera: Maximum resolution | |
| Camera: Outdoor | |
| Camera: Mounting |
