TR-4208R

Out of stock

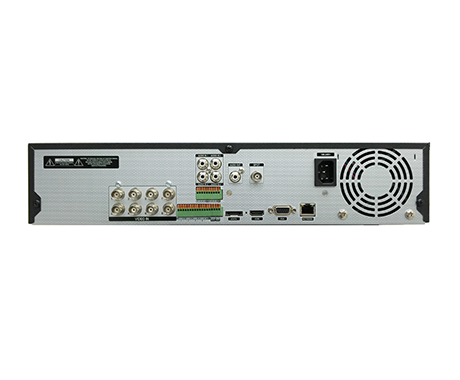

HD-TVI 8channel Full HD Recorder

ㆍSupports Multi Standard Analog Camera
ㆍUp to 240ips Full HD recording
ㆍFull HD Display with HDMI and VGA output
ㆍSupports CVBS Spot Monitor
ㆍLong transmission distance over coax cable
ㆍSupports HD-TVI camera OSD control over Coax
ㆍExpandable up to 48TB using 4 SATA interfaces and 1 eSATA storage interface
ㆍSupports RAID 1
ㆍSupports one click network configuration through FEN service

Compare product
Category:

Description

VIDEO
Video Inputs8 BNC (Multistandard Analog)
Supported Camera Types720P25, 720P30, 1080P25, 1080P30, CVBS(NTSC / PAL)
Video Outputs1 HDMI, 1 VGA, 1 BNC (Spot)
Display ResolutionHDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024
VGA : 1920 x 1080, 1440 x 900, 1280 x 1024
Composite : 720×480(NTSC) , 720×576(PAL)
Display SpeedUp to 240ips
Digital Zoomx2 ~ x12
RECORDING
Recording Resolution1920×1080, 1280×720, 960×480,720×480,960×240, 720×240 480×240, 360×240
Frame Rate240ips@1080P
CompressionH.264
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventsAlarm in, Motion detection, Video loss, Text-in
PLAYBACK
Performance4ch 1080P synchronous playback
Search ModeTime-lapse, Event log, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x4, eSATA x1, (Up to 6TB capacity for each disk)
Total Capacity48TB=6TB x(4 + (1×4))
Data Export DeviceUSB HDD, USB Stick
NETWORK
Client ConnectionGigabit Ethernet x1
Transmission Speed120ips@Full HD
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (attach clip (.cbf)), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter), NetFS(FTP)
Two-way AudioSupport
Client ViewerIDIS Center, IDIS Mobile, IDIS Web
INTERFACE
Audio In/ Out4 RCA / 1 RCA 1 HDMI
Alarm In / Out8 In / 4 Relay Out
Alarm Reset In1
Serial InterfaceRS232, RS485 (Terminal Block), USB 2.0, USB 3.0
User InterfaceMouse, IR Remote Control, Front Button, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux
UNIT Dimensions (W x H x D)430mm x 88mm x 413 mm (16.9″ x 3.5″ x 16.3″)
Unit Weight6.0kg (13.2lbs) (with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputAC 100-240 V, 50/60Hz, 1.2 – 0.6A
Power Consumption76W
ApprovalsFCC, CE, KC, CB, UL, PSE
Sequenceyes
Multiscreen on Spot Monitoryes
Color Controlbrightness, constrast, saturation, hue
Record
Scheduling Methodtime-table type (by naming), schedule a week by hour
Recording Setup Programmable for each Camerayes
ARCHIVE & Data Export
Archivingno
NETWORK
Web Browser AccessInternal, External
Remote PTZ Controlyes
Remote PTZ Setupyes
Remote PTZ Advanced Setupyes
Remote Data ExportClip Player, AVI, JPG, BMP

Additional information

Recorder: Video inputs

Recorder: Video outputs

, ,

Recorder: Display resolution

, , ,

Recorder: Display Speed

Recorder: Max. Recording Throughput

Recorder: Recording resolution

Recorder / Camera: Compression

Downloads

Firmware
Latest Version
ManualNLENFR
Quick Guide
Installation Manual
Operating Manual
DatasheetNLENFR
Latest version
A&E specificationsNLENFR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

Afmetingen TR-4200R serie
