TR-4116

Out of stock

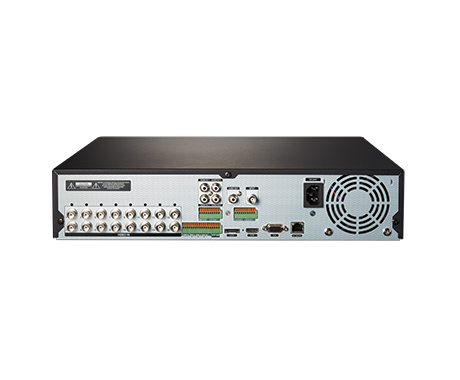

HD-TVI 16channel Full HD Recorder

ㆍSupports HD-TVI / 960H / Analog camera
ㆍUp to 480ips Full HD recording
ㆍFull HD Display with HDMI and VGA output
ㆍSupports CVBS Spot Monitor
ㆍLong transmission distance over coax cable
ㆍSupports HD-TVI camera OSD control over Coax
ㆍExpandable up to 32TB using 4 SATA interfaces and 1 eSATA storage interface
ㆍSupports one click network configuration through FEN service

Compare product
Category:

Description

VIDEO
Video Inputs 16 BNC (analog and HD-TVI)
Supported Camera Types 720P25, 720P30, 1080P25, 1080P30, CVBS(NTSC / PAL)
Video Outputs 1 HDMI, 1 VGA, 1 BNC (Spot)
Display Resolution HDMI / VGA : 1920 x 1080, 1440 x 900, 1280 x 1024
Composite:  720×480(NTSC) , 720×576(PAL)
Display Speed Up to 480ips
Digital Zoom x2 ~ x12
RECORDING
Recording Resolution 1920×1080, 1280×720, 960×480,720×480,960×240, 720×240 480×240, 360×240
Frame Rate 480ips@1080P
Compression H.264
Recording Mode Time-Lapse, Event, Pre-Event, Panic
Trigger Events Alarm in, Motion detection, Video loss, Text-in
PLAYBACK
Performance 4ch 1080P synchronous playback
Search Mode Time-lapse, Event log, Motion, Text-in
Digital Zoom x2 ~ x12
STORAGE
HDD SATA x4, eSATA x1, (Up to 4TB capacity for each disk)
Total Capacity 32TB=4TB x(4 + (1×4))
Data Export Device USB HDD, USB Stick
NETWORK
Client Connection Gigabit Ethernet x1
Transmission Speed 30ips@D1(NTSC / PAL)
Remote Data Export IDIS Player, AVI, JPG
Event Notification Email (attach clip (.cbf)), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter), NetFS(FTP)
Two-way Audio Support
Client Viewer IDIS Center, IDIS Mobile, IDIS Web
INTERFACE
Audio In/ Out 4 RCA / 1 RCA 1 HDMI
Alarm In / Out 16 In / 4 Relay Out
Alarm Reset In 1
Serial Interface RS232, RS485 (Terminal Block), USB 2.0 x 2
User Interface Mouse, IR Remote Control, Front Button, Network Remote Keyboard
GENERAL
Operating System Embedded Linux
UNIT Dimensions (W x H x D) 430mm x 88mm x 413 mm (16.9″ x 3.5″ x 16.3″)
Unit Weight 6.0kg (13.2lbs) (with 1 HDD)
Working Temperature 5°C to 40°C (41℉ ~ 104℉)
Operating Humidity 0% ~ 90%
Power Input AC 100-240 V, 50/60Hz, 1.0 – 0.5A
Power Consumption 80W
Approvals FCC, CE, KC, CB, UL, PSE
Sequence yes
Multiscreen on Spot Monitor yes
Color Control brightness, constrast, saturation, hue
Record
Scheduling Method time-table type (by naming), schedule a week by hour
Recording Setup Programmable for each Camera yes
ARCHIVE & Data Export
Archiving no
NETWORK
Web Browser Access Internal, External
Remote PTZ Control yes
Remote PTZ Setup yes
Remote PTZ Advanced Setup yes
Remote Data Export Clip Player, AVI, JPG, BMP

Additional information

Recorder: Video inputs

Recorder: Video outputs

, ,

Recorder: Display resolution

, ,

Recorder: Display Speed

Recorder: Max. Recording Throughput

Recorder: Recording resolution

Recorder / Camera: Compression

Downloads

Firmware
Latest Version
Manual NL EN FR
Quick Guide
Installation Manual
Operating Manual
Datasheet NL EN FR
Version 6.2
A&E specifications NL EN FR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

Afmetingen TR-4100 serie
