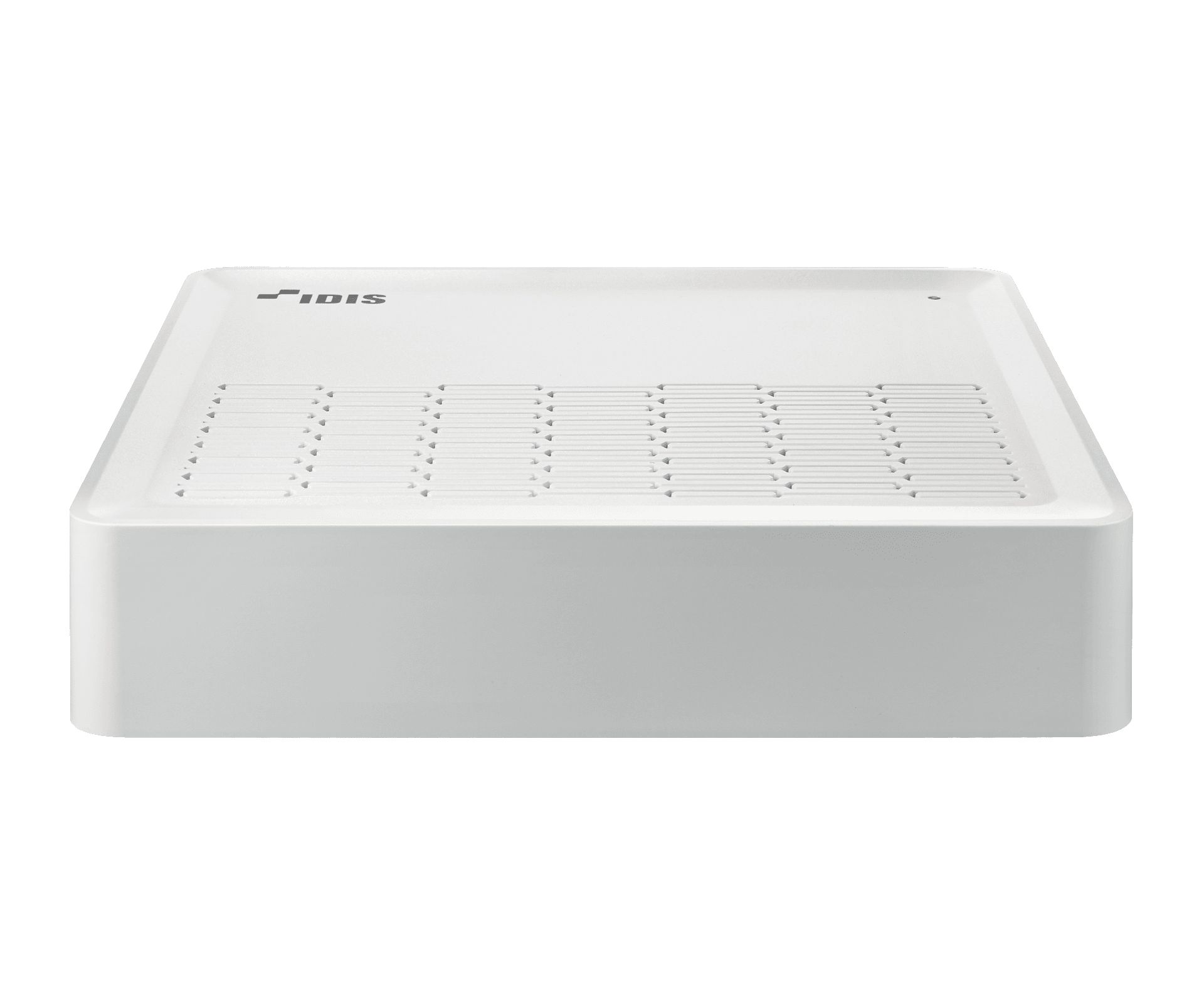

TR-1204

DirectCX 4channel Full HD Recorder

ㆍSupports HD-TVI / 960H / Analog Camera
ㆍUp to 120ips Full HD recording
ㆍFull HD Display with HDMI and VGA output
ㆍLong transmission distance over coax cable
ㆍSupports OSD control over Coax
ㆍSupports one click network configuration through FEN service

Compare product
Category: Tag:

Description

VIDEO
Video Inputs4 BNC (Multistandard Analog)
Supported Camera Types720P25, 720P30, 1080P25, 1080P30, CVBS(NTSC / PAL)
Video Outputs1 HDMI, 1 VGA
Display ResolutionHDMI / VGA : 1920 x 1080, 1440 x 900, 1280 x 1024
Display SpeedUp to 120ips
Digital Zoomx2 ~ x12
RECORDING
Recording Resolution1920×1080, 1280×720, 960×480,720×480,960×240, 720×240 480×240, 360×240
Frame Rate120ips@1080P
CompressionH.264
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventsMotion detection, Video loss
PLAYBACK
Performance4ch D1 synchronous playback
Search ModeTime-lapse, Event log, Motion
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x1 (Up to 6TB capacity, 3.5″)
Total Capacity6TB=6TB x1
Data Export DeviceUSB HDD, USB Stick
NETWORK
Client ConnectionFast Ethernet x1
Transmission Speed30ips@Full HD
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (attach jpeg), Callback to Remote S/W, Push notification (IDIS Mobile)
Two-way AudioNo
Client ViewerIDIS Center, IDIS Mobile, IDIS Web
INTERFACE
Audio In/ Out
Alarm In / Out
Alarm Reset In
Serial InterfaceUSB 2.0 x 2
User InterfaceMouse
GENERAL
Operating SystemEmbedded Linux
UNIT Dimensions (W x H x D)205mm x 44.5mm x 223,4mm
Unit Weight1.12kg (2.47lbs) (with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputAdaptor Input: 100-240V AC, 50/60Hz, 1.5A, Output: 12V DC, 3A
Power Consumption12VDC, 0.88A, 10.6W
ApprovalsFCC, CE, KC

Additional information

Recorder: Video inputs

Recorder: Video outputs

,

Recorder: Display resolution

, ,

Recorder: Display Speed

Recorder: Max. Recording Throughput

Recorder: Recording resolution

Recorder / Camera: Compression

Downloads

Firmware
Latest Version
ManualNLENFR
Quick Guide
Installation Manual
Operating Manual
DatasheetNLENFR
Latest version
A&E specificationsNLENFR
Architectural and Engineering Specifications
BIM
Building Information Model

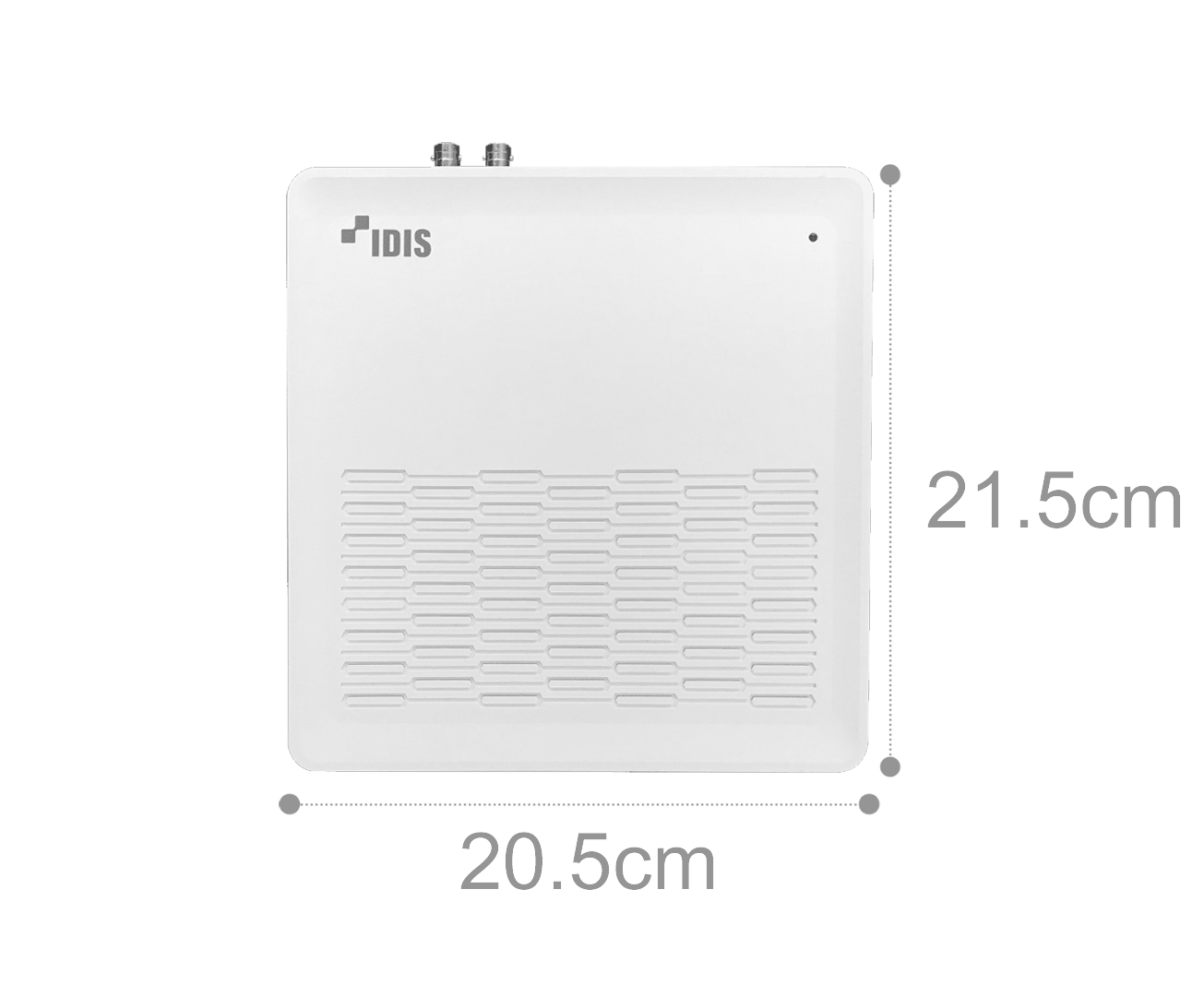

Dimensions

TR-1204 afmetingen
