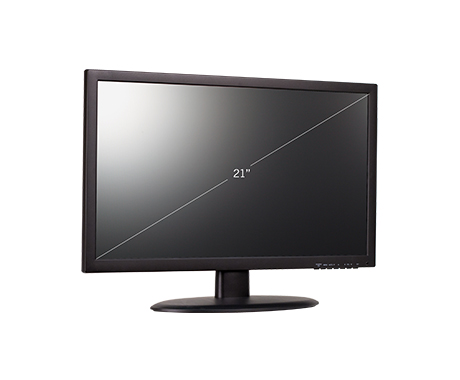

SM-F211

21.5-inch FHD LCD Monitor

ㆍFHD resolution (1920 x 1080)
ㆍCommercial grade “A” Panels Built
ㆍHi Performance Image Proceseeing Circuit
ㆍPower & Source Recovery
ㆍAuto Source Switching
ㆍPicture in Picture

Compare product
Category:

Description

Display
Screen Size 21.5″
Resolution 1920 x 1280@60Hz
Contrast Ratio 1000:1
Brightness 250cd/m2
Aspect Ratio 16:9
Color Depth 16.7M
Viewing Angle(H/V) 170˚/160˚
Pixel Pitch 0.248mm x 0.248mm
Response Time 5ms
Scanning Frequency(Horizontal) 31 ~ 80KHz
(Vertical) 56 ~ 75Hz
Video System NTSC/PAL
Audio
Built-in Speakers Yes /2W x2
Gradual Volume Increase Yes
Interface
AV(Composite) In / Out 2/1
RGB In (15Pin D-Sub) 1
HDMI In 1
PC Audio In 1
DC 12V In 1
Remote Control
IR Transmitter Yes
Special Features
3D comb Filter Yes
Deinterlace Function Yes
LCD Protection Glass Not Availablel
Rack Mountable Kit Not Available
Camera Mounting Hole Not Available
OSD Language English,  French, Deutch,Italian, Spanish, Portugese
VESA™ Standard Compatible Yes
100mm x 100mm
Additional Information
Cabinet Dimensions
W x H x D 514.5mmx370.0mmx182mm
  Weight 3.81Kg (8.40lbs)
Power Consumption 21.6W
Power Source AC110~240V(50/60Hz)
Cabinet
Cabinet Black
Stand Black
Warranty
Warranty: Parts/Labor
MTBF (Approx.) 30K hrs.(Panel)
Regulations UL, FCC, CE-EMC(LVD)

Additional information

Monitor: Interface

, , , ,

Monitor: Resolution

Monitor: Screen size
