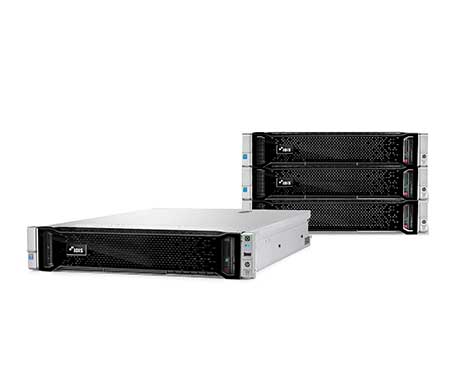

IR-1000

Out of stock

IDIS Enterprise NVR

ㆍPre-installed with IDIS Solution Suite VMS
ㆍTested and validated with IDIS Solution Suite up to 256 Full HD H.264/H.265 IP cameras
ㆍSupports up to 256 Full HD cameras in real-time for enterprise-level surveillance systems
ㆍ1,536Mbps (192MBps) maximum recording bandwidth per server
ㆍRedundancy of power for mission-critical reliability
ㆍComplete compatibility with IDIS components: IP cameras, analog DVR, DirectCX TVR, DirectIP NVR, and encoders
ㆍEquipped with RAID 5 recording, Hot swappable
ㆍ2U rack mount chassis with sliding rails and cable management arm for ease of serviceability
ㆍSupports H.264, H.265 compression, and Intelligent Codec
ㆍSupports Onvif Profile S, Axis, Panasonic, etc.

Compare product
Category:

Description

SYSTEM
IDIS Solution SuiteCompatible with Expert and Federation
Version 2.6.0 or Higher
Network Connection4 GbE RJ-45 Ports (1000Base-T)
Recording Data RateUp to 1536Mbps (192MBps)
Number of CamerasUp to 256
Recording Storage8 Bay
Hard Disk Drive ConfigurationUp to 8 x Large Form Factor Near-line SATA Hard Disk Drives, Hot-swappable, RAID 5
Operating SystemMicrosoft® Windows Embedded Standard 8 / Microsoft® Windows Server 2012 R2 (Optional)
ProcessorIntel® Xeon® Processor E5-2620v4 : 2.1GHz/8-core/DDR4 2133
Memory8GB RAM (1 x 8GB DDR4-2133MHz RDIMMs)
Video Outputs1 VGA
Optical Drive1 DVD-RW (Optional, External)
MECHANICAL
Form Factor2U Rack Mount Chassis
Dimensions (W x D x H)445.4mm x 607mm x 87.5mm (17.54″ x 23.9″ x 3.44″)
WeightMaximum 42.31lb (19.19kg)
ELECTRICAL
Power Input100-240V AC
Power SupplySingle / Redundant, Hot Swappable (Optional)
Power Capacity900W
ENVIRONMENTAL
Operating Temperature10° to 35°C (50° to 95°F)
Storage Temperature-30° to 60°C (-22° to 140°F)
Operating Humidity8% to 90% Relative Humidity
Non-operating Humidity5% to 95% Relative Humidity, 38.7°C (101.7°F) Maximum Wet Bulb Temperature, Non-condensing
Operating VibrationRandom Vibration at 0.000075 G²/Hz, 10Hz to 300Hz, (0.15 G’s Nominal)
Storage VibrationRandom Vibration at 0.0005 G²/Hz, 10Hz to 500Hz, (0.5 G’s Nominal)
Operating Shock2 Gs (The Values Represent a Peak Input Acceleration During 11ms Half-sine Shock Pulse)
Storage Shock15 Gs (The Values Represent a Peak Input Acceleration During 11ms Half-sine Shock Pulse)
Operating Altitude3048m (10,000ft)
Storage Altitude9144m (30,000ft)
ACCESSORIES SUPPLIED
Rack Mount KitBrackets, Rails, Hardware
Cable Management ArmYes
Rack Bezel1, Front
Power Cord1
CERTIFICATIONS
Emissions ClassificationFCC Rating Class A
DirectivesRoHS, Reach(SVHC), WEEE

Additional information

Recorder: Video inputs

Recorder: Video outputs

Recorder: Max. Recording Throughput

Recorder / Camera: Compression

,

Downloads

Firmware
Latest Version
ManualNLENFR
Quicksheet
Quicksheet mouse control
Quick Guide
Installation Manual
Operating Manual
DatasheetNLENFR
Version 7.2
A&E specificationsNLENFR
Architectural and Engineering Specifications
BIM
Building Information Model

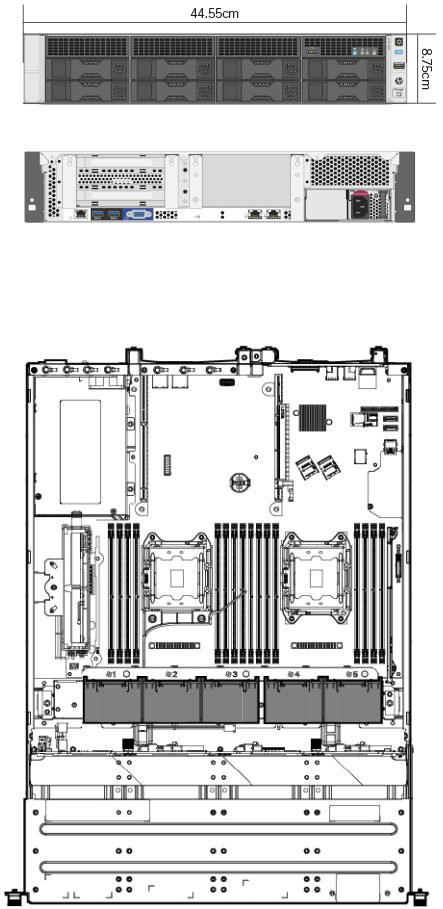

Dimensions

IR-1000 afmetingen
