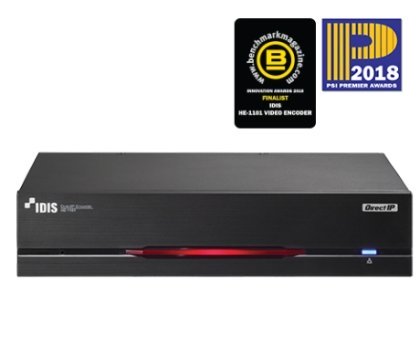

HE-1101

HDMI/VGA Video Encoder

ㆍEase integration with 3rd party system
ㆍSupports HDMI and VGA input ports
ㆍSupports Mouse and Keyboard control from remote site

Compare product
Category: Tag:

Description

Encoder
Video codecH.265, H.264, MJPEG Intelligent Codec
Max. Framerate1920 x 1080 @ 30ips
BitrateUp to 10MP per channel
Max Resolution1920 x 1080
StreamingQuadruple Streaming
Input1 x HDMI / 1 x VGA
Output1 x HDMI (Input Bypass) / 1 x VGA (Input Bypass)
Audio Input / output1 x line in (3.5mm) / 1 x line out (3.5mm)
Serial Interface1 x USB type B
Network interface1 x RJ45 (10/100)
IP Camera ProtocolDirectIP™, IDIS Protocol, ONVIF
General
Dimension (W x H x D)200mm x 44mm x 153mm (7.9″ x 1.7″ x 6.0″)
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
PoE(class)Yes(IEEE 802.3af Class 3)
Power source12VDC, PoE
ApprovalsFCC, CE, KC

Downloads

Firmware
Latest Version
ManualNLENFR
Operating Manual
DatasheetNLENFR
Latest version
A&E specificationsNLENFR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

HE-1101 afmetingen
