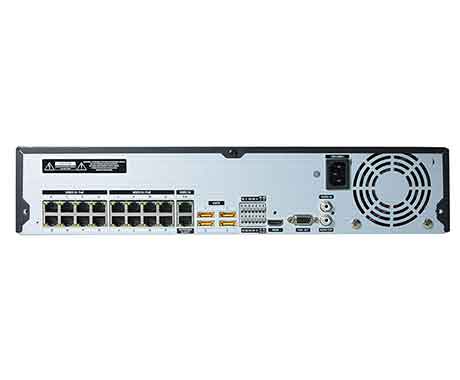

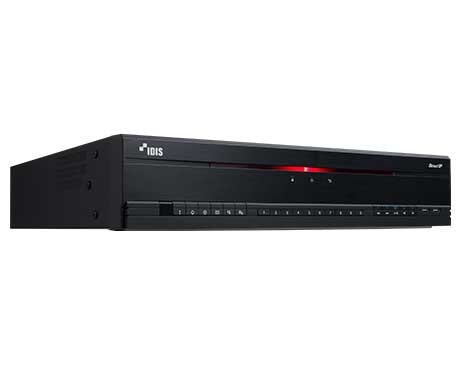

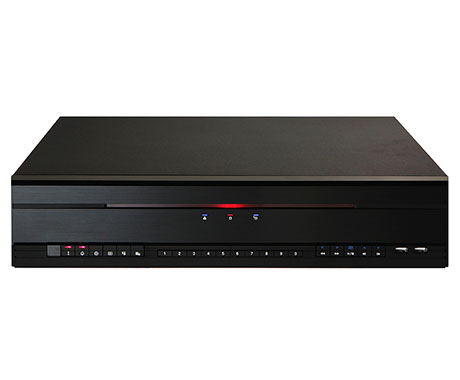

DirectIP™ 6200 Series 16channel Full HD Recorder
ㆍTotal incoming throughput 260Mbps
ㆍUp to 480ips Full HD real-time recording
ㆍUp to 480ips live display
ㆍEasy to install, set-up and play with DirectIP™ cameras
ㆍBuilt-in 16 channel PoE Switch
ㆍExpandable up to 132TB using eSATA storage
ㆍSupports RAID 1
ㆍSupports one click network configuration through FEN service
ㆍSupports third party cameras (Axis, Panasonic, ONVIF™ )
| VIDEO | |
| Video Inputs | 16 IP channels |
| Max. Incoming Throughput | 260Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| RECORDING | |
| Max. Throughput | 160Mbps, 480ips@Full HD |
| Recording Resolution | Up to 8MP (Depending on IP Camera) |
| Compression | H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Alarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video loss |
| PLAYBACK | |
| Performance | 4ch Full HD synchronous playback |
| Search Mode | Time-lapse, Event log,Thumbnail, Motion, Text-in |
| Digital Zoom | x2 ~ x12 |
| STORAGE | |
| HDD | SATA x6, eSATA x4,(Up to 6TB capacity for each disk), RAID 1 supported |
| Total Capacity | 132TB=6TB x (6(Internal) + 4×4(External)) |
| NETWORK | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video in Connection | Fast Ethernet(IP Camera) x16 +Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| Camera Power | PoE(IEEE 802.3at class 4) supported 16 ports, 120W |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter) |
| Two-way Audio | yes |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite |
| INTERFACE | |
| Audio In/ Out | Local(NVR) : 1 RCA / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | 1 |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2 |
| User Interface | Front Buttons, Mouse, IR Remote Control, Network Remote Keyboard |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 430mm x 88mm x 410.8 mm (16.9″ x 3.5″ x 16.2″) |
| Unit Weight | 6.0kg (13.2lb) (with 1 HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | AC 100-240 V, 50/60Hz, 3.0 – 1.5A |
| Power Consumption | Max. 200W (with 6 HDDs) |
| Approvals | FCC, CE, KC, CB, UL, PSE |
| Recorder: Video inputs | |
|---|---|
| Recorder: Max. Incoming Throughput | |
| Recorder: Video outputs | |
| Recorder: Display resolution | |
| Recorder: Display Speed | |
| Recorder: Max. Recording Throughput | |
| Recorder: Recording resolution | |
| Recorder / Camera: Compression |
