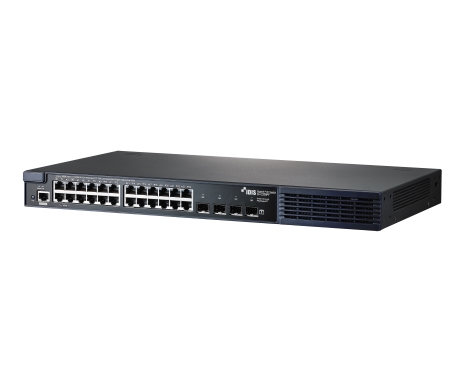

DH-2328PF

DirectIP™ Gigabit PoE Switch

ㆍIndividual port for data transmission to DirectIP™ NVR
ㆍPoE (IEEE 802.3af, IEEE 802.3at) compliant
ㆍMaximum per-device PoE delivery of 380W available for 1~24 RJ45 ports
ㆍCentral power control for greater network utility
ㆍSupports 24 RJ45 ports and 4 SFP slots

Compare product
Category: Tag:

Description

System
CPU 1Ghz single core
System Memory 512MB SDRAM, 256MB Flash
Switching Capacity 56Gbps
Connectivity
Copper Service Port 24 RJ45 Connectors
(10/100/1000BASE-T)
Copper Uplink Port
Optical Uplink Port 4 SFP Slot (1000BASE-X)
PoE Power
supported Standards IEEE 802.3af-2003 / IEEE 802.3at-2009
PD Connection Up to 24 IEEE 802.3af PDs
or up to 12 IEEE 802.3at PDs
PSE Power 54.5VDC, 600mA, PoE 24 ports, max. 380W
General
Dimensions(W x H x D) 440mm x 44mm x 260mm (17.3″ x 1.7″ x 10.2″)
Weight 4.28Kg (9.42lb)
Operation Temperature 0°C ~ 50°C (32°F ~ 122°F)
Power Input AC100-240V, 5.5~2.5A, 50/60Hz
Power Consumption max 460W
Approvals FCC,CE,KC

Downloads

Firmware
Latest version
Manual NL EN FR
Installation Manual
Datasheet NL EN FR
Version 8.3
A&E specifications NL EN FR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

DH-2328PF afmetingen
