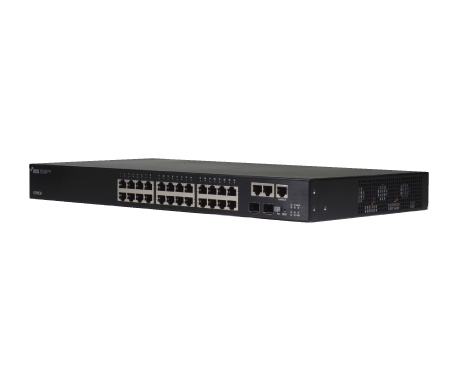

DH-2128PF

Out of stock

DirectIP™ Gigabit PoE Switch

ㆍIndividual port for data transmission to DirectIP™ NVR
ㆍPoE (IEEE 802.3af, IEEE 802.3at) compliant
ㆍMaximum per-device PoE delivery of 400W available for 1~24 RJ45 ports
ㆍCentral power control for greater network utility
ㆍSupports 26 RJ45 ports and 2 SFP slots

Compare product

Description

System
CPU56Gbps
System Memory128MB SDRAM, 32MB Flash
Switching Capacity56Gbps
Connectivity
Copper Service Port24 RJ45 Connectors
(10/100/1000BASE-T)
Copper Uplink Port2 RJ45 Connectors (10/100/1000BASE-T)
Optical Uplink Port2 SFP Slot (1000BASE-X)
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 24 IEEE 802.3af PDs
or up to 13 IEEE 802.3at PDs
PSE Power Budget400W
General
Dimensions(W x H x D)440mm x 44mm x 220mm (17.3″ x 1.7″ x 8.7″)
Weight3.13Kg (6.90lb)
Operation Temperature-20°C ~ 50°C (-4°F ~ 122°F)
Power InputAC100-240V, 50/60Hz, 4.8A
Power Consumption450W
ApprovalsFCC,CE,KC

Downloads

ManualNLENFR
Operating Manual
DatasheetNLENFR
Version 6.2
BIM
Building Information Model

Dimensions

Afmetingen DH-2128PF
