DC-D3233WRX

Niet meer leverbaar

1080p Full HD Gemotoriseerde VariFocus lens Duplex audio Power over Ethernet True Dag & Nacht met ICR Backlight Compensation

True Wide Dynamic Range Infrarood Vandaalbestendig IP66 weerbestendig

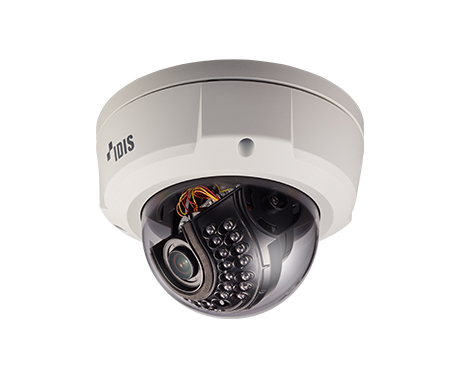

Full HD Vandal Resistant IR Dome Camera

• Easy installation with DirectIP NVR
• Full HD (1080p) resolution
• Motorized vari-focal lens (f=3.3 – 10mm)
• Micro SD / SDHC / SDXC
• Two-way audio
• Alarm in / out
• Vandal proof / IP66 supports
• PoE (IEEE 802.3af Class 3), 12VDC
• Supports H.265 / H.264 codec
• Day and night (ICR)
• True wide dynamic range (WDR)
• Low light enhancer
• IR LED (Distance : 20m)
• 3-axis mechanical design for installation
• Supports ONVIF



Compare product
Category: Tag:

Description

Video
Image Sensor1/3″ CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens typeMotorized Vari-focal
Focal Lengthf=3.3 – 10mm
ApertureF=1.3 – 2.5
Iris ControlP-Iris
Angular Field of ViewWide : 93.9º(H), 50º(V), 111º(D)
Tele : 31.8º(H), 17.9º(V), 36.5º(D)
Pan/Tilt RangePan: -176° ~ 176°, Tilt: 0° ~ 66°, Rotate: -90° ~ 90°
Min. IlluminationCOLOR : 0.1 lux @ F1.3
B/W : 0 lux (IR LED ON)
S/N RatioMore than 45dB
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter( 1 ~ 1/5, 1/7.5, 1/15)
Day & NightIR cut filter with auto switch
IR Distance (LEDs)20 m (28ea)
Image SettingConfigurable Exposure, White Balance, Sharpness
Digital Noise ReductionConfigurable 2DNR/3DNR
Backlight CompensationOn / Off / HSBLC
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer
De-fogOn / Off
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out1 BNC(Accessory)
Network
Video CompressionH.264(MP), M-JPEG , H.265
Intelligent CodecSupported
Bitrate ControlH.264 – CBR/ VBR, H.265 – CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP™ Mode : DirectIP
Compatibility Mode : IDIS
ONVIF Profile S
Max. Frame RateDirectIP™ Mode : 30ips : 1920 x 1080(WDR)
Max. Frame RateCompatibility Mode : 60ips : 1920 x 1080
30ips : 1920 x 1080(WDR)
Supports ResolutionDirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240
Compatibility Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240
Multi-Video StreamingDirectIP™ Mode : Quadruple streaming
Compatibility Mode : Quadruple streaming
Network ProtocolsDirectIP™ Mode : Direct IP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
SecurityDirectIP™ Mode : SSL Encryption
Compatibility Mode : Multi-User Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access ClientDirectIP™ Mode : DirectIP™ NVR connection
Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45(10/100/1000BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 128GB)
Alarm & Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, TripZone
Event NotificationRemote S/W, Email (with Image)
Audio In/ OutLine-in 1ea / Line-out 1ea
Alarm In / OutInput 1ea / Output 1ea
Environmental
Vandal ResistanceIK10
Out-door ReadyIP66
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE(IEEE 802.3af class 3)
Power Consumption7.5W
ApprovalFCC, CE, KC
Mechanical
Dimensions (Ø x H)Ø155mm x 111.5mm (Ø6.11″ x 4.39″)
Weight0.9 kg
