DC-T1833WHR

Out of stock

4K UHD Gemotoriseerde VariFocus lens Duplex audio Vandaalbestendig IP66 weerbestendig Power over Ethernet

True Dag & Nacht met ICR Backlight Compensation HSBLC Infrarood

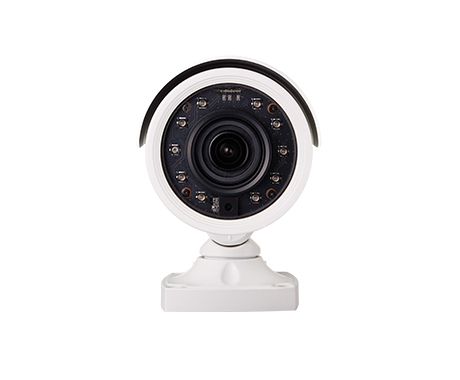

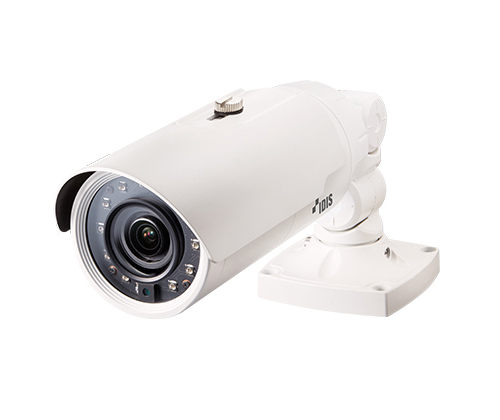

8MP IR Bullet Camera with Heater

ㆍEasy installation with DirectIP NVR
ㆍ4K UHD (3840×2160) resolution
ㆍMotorized vari-focal lens (f=3.6 – 9.8mm)
ㆍTwo-way audio
ㆍAlarm in / out
ㆍVandal proof / IP66 supports
ㆍBuilt-in heater
ㆍPoE (IEEE 802.3af Class 3), 12VDC
ㆍDay and night (ICR)
ㆍIR LED (Distance : 30m)

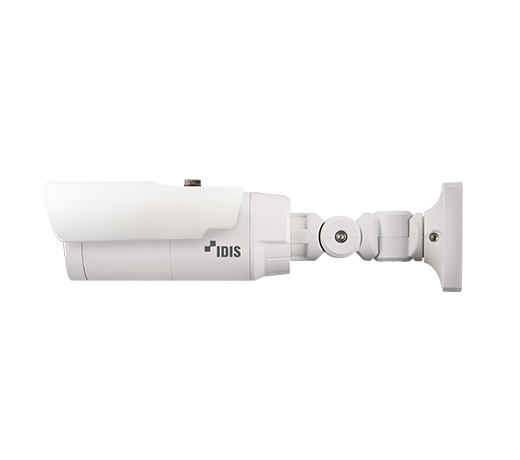

ㆍ3-axis mechanical design for installation
ㆍSupports ONVIF

Compare product
Category: Tag:

Description

Video
Image Sensor1/2.5″ CMOS
Max. Resolution3840 x 2160
Scanning ModeProgressive Scan
Lens typeMotorized Vari-focal
Focal Lengthf=3.6 – 9.8mm
ApertureF1.6 – 3.2
Iris ControlP-Iris
Angular Field of ViewWide : 103.0º(H), 52.7º(V), 118.0º(D)
Tele : 36.6º(H), 19.6º(V), 41.1º(D)
Min. IlluminationCOLOR : 0.3 lux F1.6
B/W : 0 lux (IR LED ON)
S/N Ratiomore than 48dB
Dynamic Rangemore than 69 dB
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter(1/7.5,1/15)
Day & NightIR cut filter with auto switch
IR Distance (LEDs)30 m (10 ea)
Image SettingConfigurable Exposure, White Balance, Sharpness
Digital Noise ReductionConfigurable 2DNR/3DNR
Backlight CompensationOn / Off / HSBLC
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer
Privacy Masking16 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out1 BNC
Network
Video CompressionH.264(MP), M-JPEG
Intelligent CodecSupported
Bitrate ControlH.264 – VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law
Two-way AudioYes
IP Camera ProtocolDirectIP™ Mode : DirectIP
Compatibility Mode : IDIS
ONVIF Profile S
Max. Frame RateDirectIP™ Mode : 15ips : 3840×2160
Compatibility Mode : 30ips : 3840×2160
Supported ResolutionDirectIP™ Mode : 3840 x 2160 (8MP), 1920×1080, 1280×720, 704×480, 640×360, 352×240
Compatibility Mode : 3840 x 2160 (8MP), 1920×1080, 1280×720, 704×480, 352×240
Multi-Video StreamingDirectIP™ Mode : Quadruple streaming
Compatibility Mode : Quadruple streaming
Network ProtocolsDirectIP™ Mode : Direct IP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
SecurityDirectIP™ Mode : SSL Encryption
Compatibility Mode : Multi-User Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access ClientDirectIP™ Mode : DirectIP™ NVR connection
Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45(10/100/1000BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 100MB)
Edge Storage
Alarm & Event
Trigger EventMotion Detection, Audio Detection, Tampering, TripZone
Event NotificationRemote S/W, Email (with Image)
Audio In/ OutLine-in 1ea / Line-out 1ea
Alarm In / OutInput 1ea / Output 1ea
Environmental
Vandal ResistanceIK10
Out-door ReadyIP66, Heater
Operating Temperature-40°C ~ 50°C (-40°F ~ 122°F)
*Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE(IEEE 802.3af class 3)
Power Consumption13.2W
ApprovalFCC, CE, KC
Mechanical
Dimensions (W x H)Ø73.5mm x 321.9mm (Ø2.9″ x 12.67″)
Weight1.4 kg (3.09 lb)

Additional information

Camera: Aperture

Camera: BLC / WDR

,

Recorder / Camera: Compression

,

Camera: Day & Night

Camera: Focal length

Camera: IR distance

Camera: Lens type

Camera: Maximum resolution

Camera: Outdoor

,

Camera: Mounting

,

Downloads

Firmware
Latest Version
ManualNLENFR
Quick Guide
Installation Manual
Operating Manual
DatasheetNLENFR
Version 6.2
A&E specificationsNLENFR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

Information request

You may also like…
