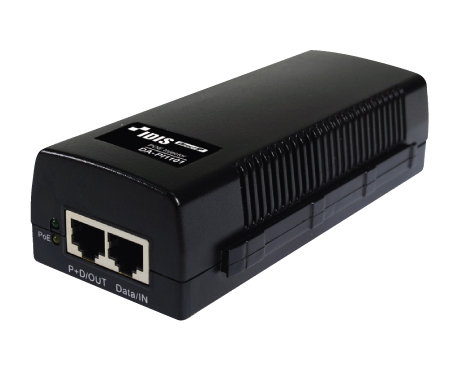

DA-PI1101

Out of stock

Single Port PoE Injector

ㆍUp to 30W of PoE Power feeding on 2-pairs
ㆍCompatible with IEEE 802.3af, IEEE 802.3at
ㆍProtects low power devices to receive only the power they need
ㆍAutomatic detection and protection of non–standard ethernet terminals
ㆍParallel slide-in design for easy installation

Compare product

Description

RJ45 Ethernet Interface_DATA In
port1 ch
ConnectivityRJ45, Auto-MDI/MDI-X sensing
Wire TitleCAT5 or better
DistanceUp to 100m
Speed10/100 BASE T
RJ45 Ethernet Interface_PoE
port1 ch
Pin Assignment and Polarity1,2( ), 3,6(-)
PSE Power52V DC, Max. 30W
DistanceUp to 100m
Speed10/100/1000 BASE T
Supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
General
Dimensions(W x H x D)87.9mm x 51.3mm x 166mm (3.5″ x 2.0″ x 6.5″)
Weight350g (0.77lb)
Operation Temperature-15°C ~ 45°C (5℉ ~ 113℉)
Power Input100 ~240V AC, 0.8A
ApprovalsFCC, CE, KC

Downloads

HandleidingNLENFR
Bedieningshandleiding
DatasheetNLENFR
Versie 6.2
BIM
Bouwwerk Informatie Model

Dimensions

Afmetingen DA-PI1101
