DA-EC1101R

Out of stock

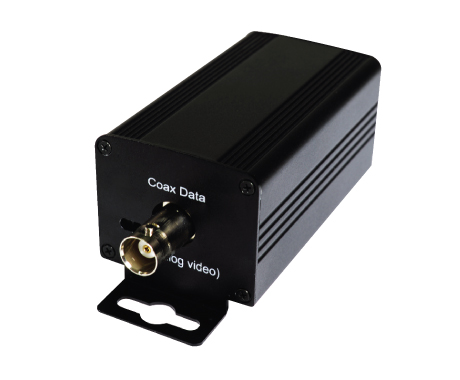

Ethernet over Coax (EoC) Receiver

ㆍMakes it possible to install Full HD network cameras using existing coaxial cables
ㆍTwo-way communication allows use of the product as a transmitter or a receiver
ㆍSupports PoE (IEEE 802.3af, IEEE 802.3at)
ㆍSupports plug and play without setting up special IP addresses

Compare product

Description

RJ-45 Ethernet Interface
ConnectivityRJ-45, Auto-MDI/MDI-X sensing
Wire TypeCAT5 or better
DistanceUp to 100m
Speed10/100 Base-T, half/full duplex
Latency3ms
Data Throughput85Mbps
Coax Building Wiring Interface
ConnectivityBNC, RG-59/U or similar
Impedance25 to 100 Ω
DistanceUp to 800m
GENERAL
Unit Dimensions (W x H x D)43mm x 39mm x 100mm (1.7″ x 1.5″ x 3.9″)
Unit Weight145g (0.32lbs)
Operation Temperature-10°C ~ 85°C (14°F ~ 185°F)
Power Input48VDC
Power Consumption60W
ApprovalsFCC, CE, KC

Downloads

ManualNLENFR
Operating Manual
DatasheetNLENFR
Version 5.6
BIM
Building Information Model

Dimensions

Afmetingen DA-EC1101x
