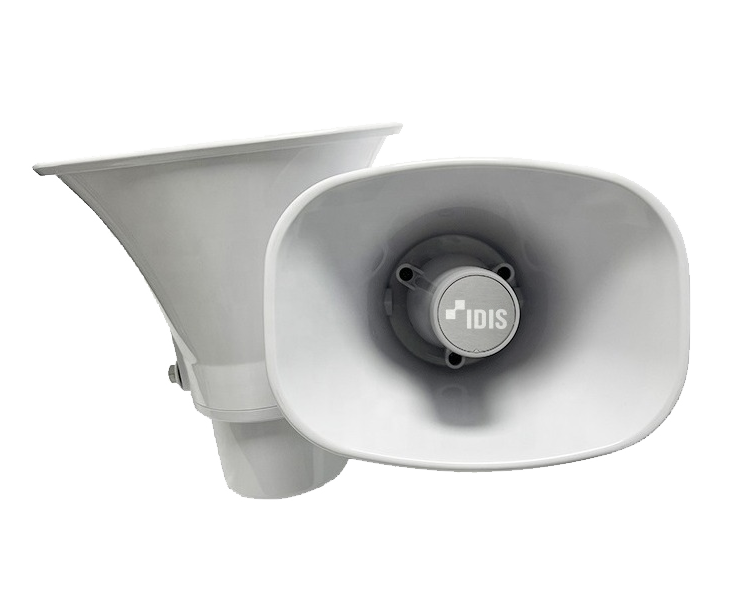

Outdoor Horn Speaker
• IP66
• 30W, PoE
• Built-in mic
• SIP & ONVIF compatibility
• HTTP API for Alarm in
• Pre-recorded messages
• 48K OPUS Audio Codec
• HD Broadcast
DS-HW1030
Description
| Audio | |
| Audio | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Audio input | Built-in mic |
| Max SPL | 120dB |
| Frequency Response | 350Hz ~ 8KHz |
| Frequency Range | 500-2KHZ (+-10dB) 400-12KHZ (+-20dB) |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| Amplifier | Built-in 30W Amplifier |
| Network | |
| Security | Password protection, IP address filtering, Digest authentication, User access log |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Ethernet | 10/100 Base-TX, RJ45 |
| VoIP | Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 future). Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
| Electrical | |
| Power Supply | PoE or DC 12V/24V |
| Power Consumption | 30W |
| Mechanical | |
| Material | ABS (IP66 waterproof) |
| Outdoor Ready | IP66 |
| Dimensions (H x B x D) | 285mm x 205mm x 290mm |
| Weight | 2Kg |
Downloads
| Firmware | ||
| Latest version | | |
| Software | ||
| Scanner tool | | |
| Manual | NL | EN |
| Installation Manual | | |
| Datasheet | NL | EN |
| Latest version | | |
| A&E specifications | NL | EN |
| Architectural and Engineering Specifications | | |
| BIM | ||
| Building Information Model | | |
