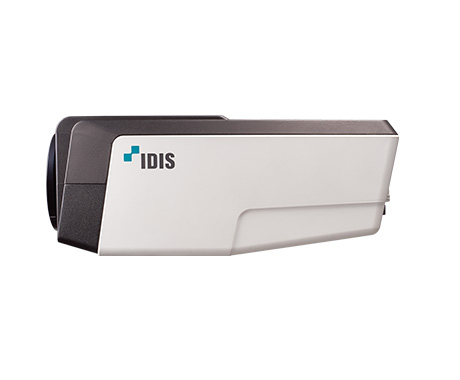

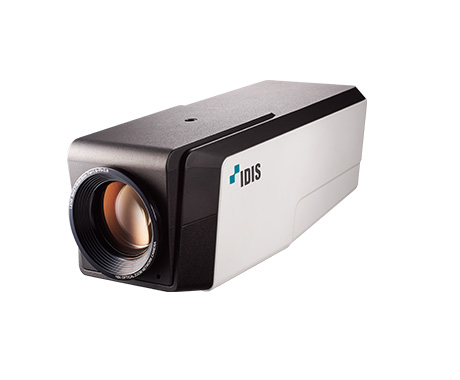

Full HD 18x Zoom Camera
ㆍEasy installation with DirectIP NVR
ㆍFull HD (1080p) resolution

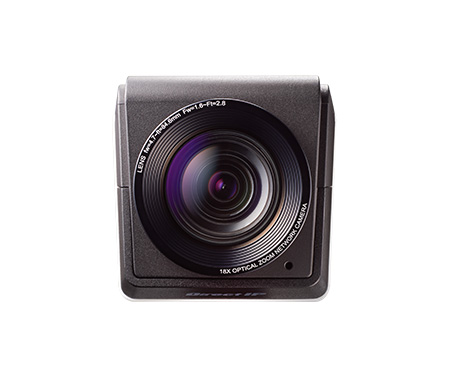

ㆍAF optical zoom lens(f=4.7 – 84.6mm), 18x zoom
ㆍSD/SDHC
ㆍtwo-way audio
ㆍAlarm in / out
ㆍPoE(IEEE 802.3af class 0), 12V DC, 24V AC
ㆍDay&night (ICR)
ㆍSupports ONVIF
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens type | AF Zoom Lens |
| Focal Length | f=4.7 – 84.6mm |
| Aperture | F1.6 – 2.8 |
| Iris Control | DC Auto Iris |
| Angular Field of View | Wide : 61.2º(H), 35.6º(V), 68.9º(D) Tele : 3.6º(H), 2.1º(V), 4.1º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0.04 lux @ F1.6 |
| S/N Ratio | 31.2 dB |
| Dynamic Range | 74.7 dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter(1/7.5,1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | – |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction | Configurable 2DNR |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | – |
| Privacy Masking | 16 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 RCA |
| Network | |
| Video Compression | H.264(MP), M-JPEG |
| Intelligent Codec | – |
| Bitrate Control | H.264 – CBR / VBR |
| Max. Frame Rate | 30fps : 1920×1080 |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP™ Mode : DirectIP |
| Compatibility Mode : IDIS ONVIF Profile S |
|
| Supported Resolution | DirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640x 360, 352×240 |
| Compatibility Mode : 1920×1080, 1280×720, 704×480, 352×240 | |
| Multi-Video Streaming | DirectIP™ Mode : Quadruple streaming |
| Compatibility Mode : Triple streaming | |
| Network Protocols | DirectIP™ Mode : Direct IP Protocol |
| Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
|
| Security | DirectIP™ Mode : SSL Encryption |
| Compatibility Mode : Multi-User Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
|
| Remote Access Client | DirectIP™ Mode : DirectIP™ NVR connection |
| Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite | |
| Ethernet | RJ45(10/100BASE-T) |
| Edge Storage | SD (SDHC) |
| Alarm & Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, TripZone |
| Event Buffering (Pre & Post) | yes (up to 60MB) |
| Event Notification | Remote S/W, Email (with Image) |
| -Pre-recorderd Voice Alert (IDIS protocol) | Off / On |

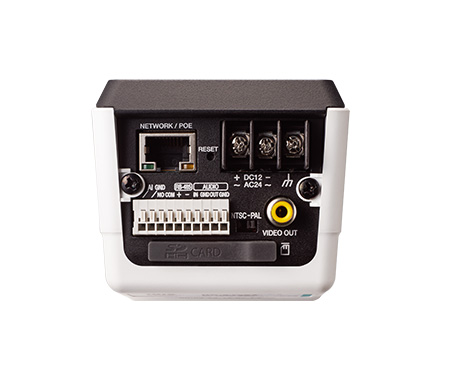

| Audio In/ Out | Line-in 1ea / Line-out 1ea |
| Alarm In / Out | Input 1ea / Output 1ea |
| Environmental | |
| Vandal Resistance | – |
| Out-door Ready | – |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, 24VAC, PoE(IEEE 802.3af class 0) |
| Power Consumption | 6W |
| Electrical Approval | FCC, CE(50130-4), KC |
| Mechanical | |
| Dimensions (W x H x D) | 77.8mm x 75mm x 190.1mm (3.07″ x 2.96″ x 7.49″) |
| Weight | 0.71 kg (1.57 lb) |
