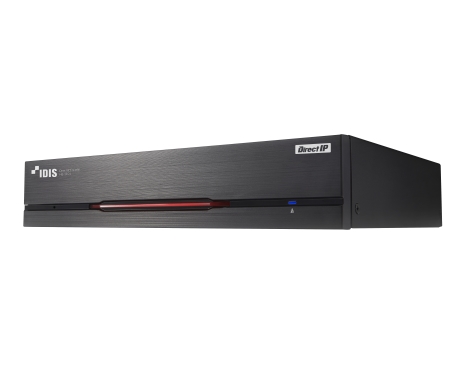

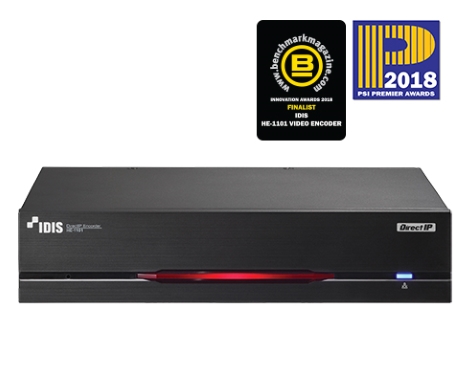

HDMI/VGA Video Encoder
Alternatief:
Beschrijving
| Encoder | |
| Video codec | H.265, H.264, MJPEG Intelligent Codec |
| Max. Framerate | 1920 x 1080 @ 30ips |
| Bitrate | Tot 10MP per kanaal |
| Max Resolutie | 1920 x 1080 |
| Streaming | Quadruple Streaming |
| Ingang | 1 x HDMI / 1 x VGA |
| Uitgang | 1 x HDMI (Ingang Bypass) / 1 x VGA (Ingang Bypass) |
| Audio Ingang / Uitgang | 1 x line in (3.5mm) / 1 x line out (3.5mm) |
| Serieel Interface | 1 x USB type B |
| Netwerk interface | 1 x RJ45 (10/100) |
| IP Camera Protocol | DirectIP™, IDIS Protocol, ONVIF |
| Algemeen | |
| Afmetingen (B x H x D) | 200mm x 44mm x 153mm (7,9″ x 1,7″ x 6,0″) |
| Bedrijfstemperatuur | 0°C tot 40°C (32℉ ~ 104℉) |
| PoE(class) | Ja (IEEE 802.3af Class 3) |
| Power source | 12VDC, PoE |
| Approvals | FCC, CE, KC |
Downloads
| Firmware | |||
| Laatste versie | | ||
| Handleiding | NL | EN | FR |
| Bedieningshandleiding | | | |
| Datasheet | NL | EN | FR |
| Laatste versie | | | |
| A&E specifications | NL | EN | FR |
| Architectural and Engineering Specifications | | | |
| BIM | |||
| Bouwwerk Informatie Model | | ||

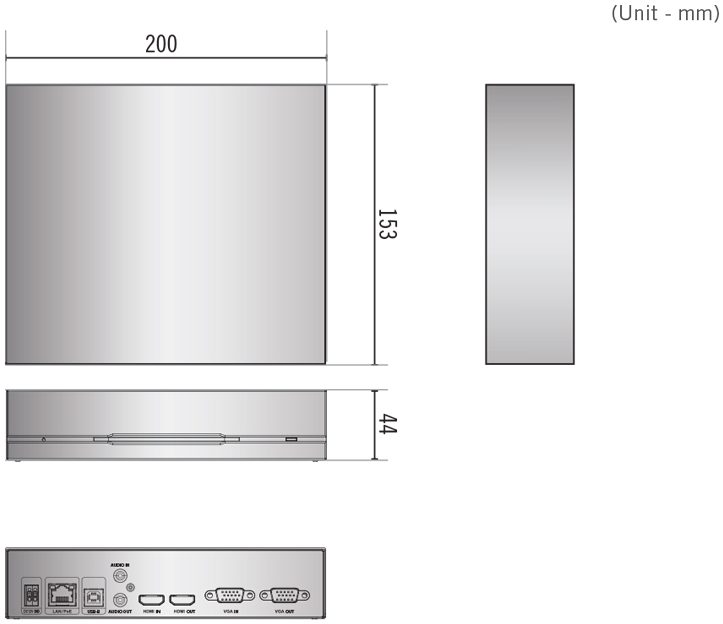

Afmetingen
