DC-Y1514W

Uitverkocht

5 MegaPixel Fisheye lens Duplex audio True Dag & Nacht met ICR Power over Ethernet Backlight Compensation HSBLC

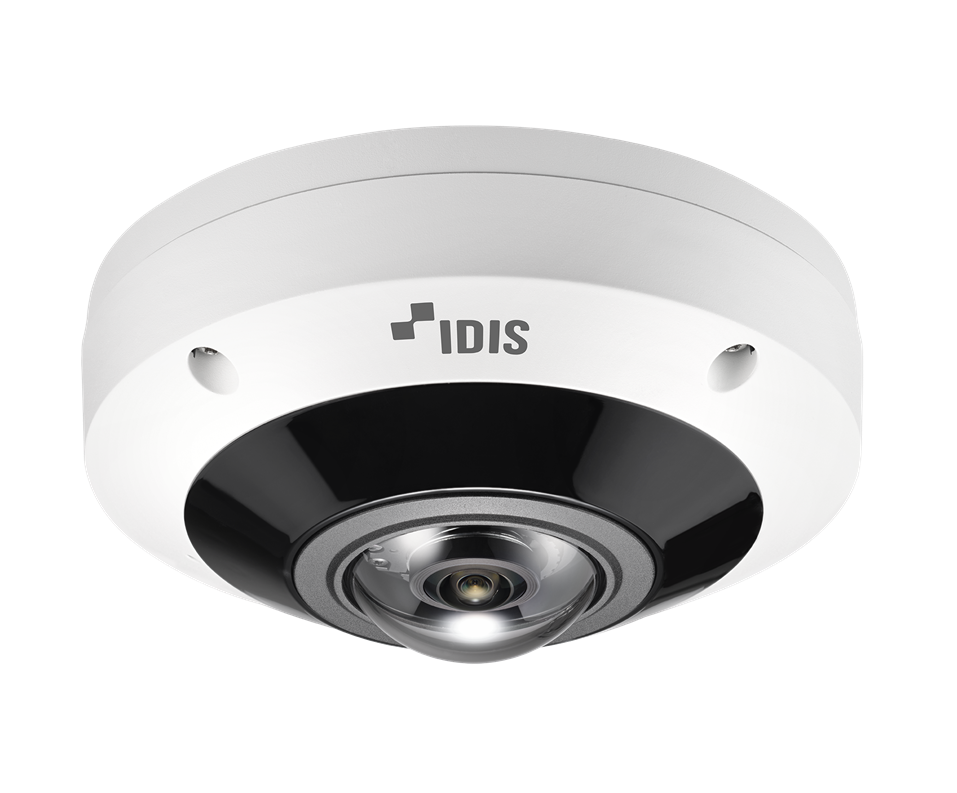

5MP Vandaalbestendige Fisheye Camera

ㆍEenvoudige installatie met DirectIP NVR
ㆍ5MP (2560 x 2048) resolutie
ㆍFixed-focal lens(f=1.45 mm)
ㆍMicro SD/SDHC/SDXC
ㆍTwo-way audio (Interne MIC)
ㆍAlarm in / uit
ㆍVandaalbestendig / IP66
ㆍPoE(IEEE 802.3af class 3), 12V DC
ㆍDag&nacht (ICR)
ㆍDiverse kijkopties, 6 de-warping beelden modus
ㆍOndersteunt ONVIF

Vergelijk product
Categorie:

Beschrijving

Video
Beeld Sensor 1/1.8″ CMOS
Max. Resolutie 2560 x 2048
Scanning Mode Progressive Scan
Lens type Fixed-focal
Brandpuntsafstand f=1.45mm
Opening F2.2
Iris Control Fixed Iris
Kijkhoeken 180º(H), 180º(V), 180º(D)
Pan/Tilt/Zoom
Min. Verlichting Kleur: 0.8 lux @ F2.2
Z/W : 0.03 lux @ F2.2
S/N Ratio Meer dan 45dB
Dynamische Range Meer dan 70dB
Electronische Shutter Speed Auto / Handmatig (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter(1/7.5, 1/15)
Dag & Nacht IR cut filter met automatische schakelaar
IR Afstand (LEDs)
Beeldinstellingen Instelbare Exposure, Witbalans, Scherpte
Digital Ruisonderdrukking Instelbaar 2DNR/3DNR
Backlight Compensatie Aan / Uit / HSBLC
Mirroring / Pivot
Beeld stabilisatie
Privacy Masker 16 Zones
Intelligent Video Video Motion Detectie, Active Tampering Alarm, Trip Zone
Viewing Compositie 1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Uit
Netwerk
Video Compressie H.264(MPEG-4 Part 10/AVC), M-JPEG
Intelligent Codec Ondersteund
Bitrate Control H.264 – VBR
Audio Compressie ADPCM 16K, G.726, G.711 u-Law
Two-way Audio Ja
IP Camera Protocol DirectIP™ Modus : DirectIP
Compatibiliteit Modus : IDIS
ONVIF Profile S
Max. Frame Rate DirectIP™ Modus : 30ips : 2560 x 2048
Compatibiliteit Modus : 30ips : 2560 x 2048
Ondersteunt Resolutie DirectIP™ Modus : 2560×2048, 1536×1536, 640×512, 512×512
Compatibiliteit Modus : 2560×2048, 1280×1024, 640×512, 2048×2048, 2048×1024, 1536×1536, 1024×1024, 1024×512, 512×512
Multi-Video Streaming DirectIP™ Modus : Quadruple streaming
Compatibiliteit Modus : Hextuple streaming
Netwerk Protocollen DirectIP™ Modus : Direct IP Protocol
Compatibiliteit Modus : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Beveiliging DirectIP™ Modus : SSL Encryptie
Compatibiliteit Mode : Multi-User Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryptie
Remote Access Client DirectIP™ Modus : DirectIP™ NVR connectie
Compatibility Modus : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45(10/100/1000BASE-T)
Opnamesessie Buffer (NLTSrec) Ja (tot 100MB)
Edge Opslag micro SD/SDHC/SDXC, Smart Failover (tot 128GB)
Alarm & Event
Trigger Event Motion Detectie, Alarm in, Audio detectie, Tampering, TripZone
Event Notificatie Remote S/W, Email (met plaatje)
Audio In/ Uit Line-in 1ea + Interne Mic 1ea / Line-out 1ea
Alarm In / Uit Ingang 1ea / Uitgang 1ea
Omgeving
Vandaalbestendig IK10
Outdoor Ready IP66
Bedrijfstemperatuur -10°C ~ 50°C ( 14°F ~ 122°F)
*Opstarten boven 0°C (32°F)
Bedrijfsvochtigheid 0% ~ 90%
Elektrisch
Voeding 12VDC, PoE(IEEE 802.3af class 3)
Stroomverbruik 7,56W
Goedkeuring FCC, CE, KC
Mechanisch
Afmetingen (Ø x H) Ø155,0mm x 48,3mm (Ø6.10″ x 1.90″)
Gewicht 0,59 kg (1,31 lb)

Extra informatie

Camera: Opening

Camera: BLC / WDR

,

Recorder / Camera: Compressie

,

Camera: Dag & Nacht

Camera: Brandpuntsafstand

Camera: IR afstand

Camera: Lens type

Camera: Maximale resolutie

Camera: Outdoor

Camera: Montage

Downloads

Firmware
Laatste versie
Handleiding NL EN FR
Snelle gids
Installatie handleiding
Bedieningshandleiding
Datasheet NL EN FR
Laatste versie
A&E specificaties NL EN FR
Architectural and Engineering Specifications
BIM
Bouwwerk Informatie Model

Afmetingen

Afmetingen DC-Y1500(W) serie
