DC-E3212WRX

Uitverkocht

1080p Full HD Fixed lens Vandaalbestendig IP66 weerbestendig Power over Ethernet True Dag & Nacht met ICR Backlight Compensation True Wide Dynamic Range Infrarood

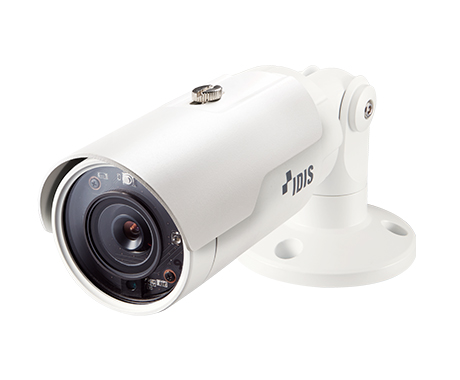

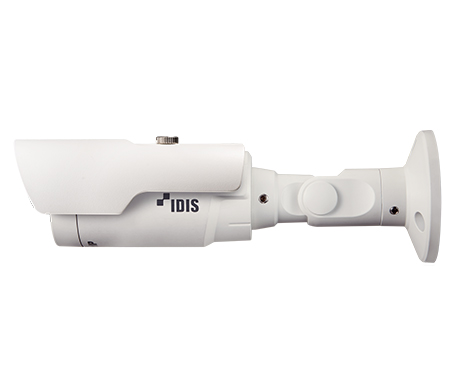

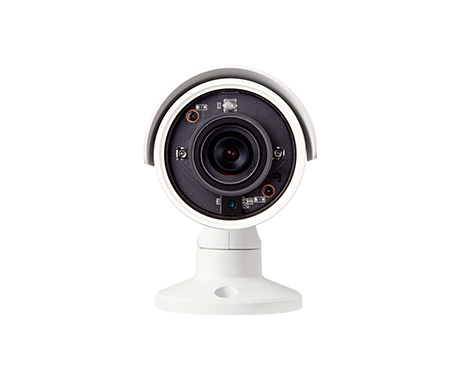

Full HD IR Bullet Camera

ㆍEenvoudige installatie met DirectIP NVR
ㆍFull HD (1080p) resolutie
ㆍFixed-focal lens (f=3.3mm)
ㆍVandaalbestendig / ondersteunt IP66
ㆍPoE (IEEE 802.3af Class 2)
ㆍDag en nacht (ICR)
ㆍTrue wide dynamic range (WDR)
ㆍOndersteunt H.265 / H.264 codec
ㆍLow light enhancer
ㆍIR LED (Afstand : 20m)
ㆍ3-assig mechanisch ontwerp voor installatie
ㆍOndersteunt ONVIF

Vergelijk product
Categorie: Tag:

Beschrijving

Video
Beeld Sensor1/3″ CMOS
Max. Resolutie1920 x 1080
Scanning ModeProgressive Scan
Lens typeFixed-focal
Brandpuntsafstandf=3.3mm
OpeningF=2.0
Iris ControlFixed Iris
Kijkhoeken96,4º(H), 52,3º(V), 113,2º(D)
Min. VerlichtingCOLOR : 0.1 lux @ F2.0
B/W : 0 lux (IR LED aan)
S/N Ratiomeer dan 45dB
Dynamisch bereik120dB (True WDR)
Electronische shutter snelheidAuto / Handmatig (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter(1~1/5,1/7.5,1/15)
Dag & NachtIR cut filter met automatische schakelaar
IR Afstand (LEDs)20 m (2ea)
Image InstellingInstelbare Exposure, Wit Balans, Scherpte
Digitale RuisonderdrukkingInstelbaar 2DNR/3DNR
Backlight CompensatieAan / Uit / HSBLC
Mirroring / PivotHorizontaal / Verticaal / Pivot
Beeld stabilisatie
De-fogAan / Uit
Privacy Masker8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Uit1 BNC
Netwerk
Video CompressieH.264(MP), M-JPEG, H.265
Intelligent CodecOndersteund
Bitrate ControlH.264 – CBR / VBR, H.265 – CBR / VBR
Audio Compressie
Two-way Audio
IP Camera ProtocolDirectIP™ Modus : DirectIP
Compatibility Modus : IDIS
ONVIF Profile S
Max. Frame RateDirectIP™ Modus : 30ips : 1920 x 1080(WDR)
Compatibility Modus : 30ips : 1920 x 1080(WDR)
Ondersteunt ResolutieDirectIP™ Modus : 1920×1080, 1280×720, 704×480, 640×360, 352×240
Compatibiliteit Modus : 1920×1080, 1280×720, 704×480, 640×360, 352×240
Multi-Video StreamingDirectIP™ Modus : Quadruple streaming
Compatibiliteit Modus : Quadruple streaming
Netwerk ProtocollenDirectIP™ Modus : Direct IP Protocol
Compatibiliteit Modus : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
BeveiligingDirectIP™ Modus : SSL Encryptie
Compatibiliteit Modus : Multi-User Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryptie
Remote Access ClientDirectIP™ Modus : DirectIP™ NVR connectie
Compatibiliteit Modus : IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45(10/100BASE-T)
Recording Session Buffer (NLTSrec)Ja (Tot 60MB)
Edge Storage
Alarm & Event
Trigger EventMotion Detectie, Tampering, TripZone
Event NotificatieRemote S/W, Email (with Image)
Pre-recorderd Voice Alert (IDIS protocol)
Audio In/ Uit
Alarm In / Uit
Omgeving
VandaalbestendigIK10
Out-door ReadyIP66
Bedrijfstemperatuur-20°C ~ +55°C (-4°F ~ +131°F)
*Opstarten boven 0°C (32°F)
Bedrijfsvochtigheid0% ~ 90%
Elektrisch
VoedingPoE(IEEE 802.3af class 2)
Stroomverbruik5,24W
GoedkeuringFCC, CE, KC
Mechanisch
Afmetingen (B x H)Ø60mm x 230.5mm (Ø2.36″ x 9.07″)
Gewicht0.51 kg (1.13 lb)

Extra informatie

Camera: Opening

Camera: BLC / WDR

Recorder / Camera: Compressie

Camera: Dag & Nacht

Camera: Brandpuntsafstand

Camera: IR afstand

Camera: Lens type

Camera: Maximale resolutie

Camera: Outdoor

Camera: Montage

,

Downloads

Firmware
Laatste versie
HandleidingNLENFR
Snelle gids
Installatie handleiding
Bedieningshandleiding
DatasheetNLENFR
Versie 7.0
A&E specificatiesNLENFR
Architectural and Engineering Specifications
BIM
Bouwwerk Informatie Model
