DC-D3233RX

Uitverkocht

1080p Full HD Gemotoriseerde VariFocus lens Duplex audio Power over Ethernet True Dag & Nacht met ICR Backlight Compensation

True Wide Dynamic Range Infrarood

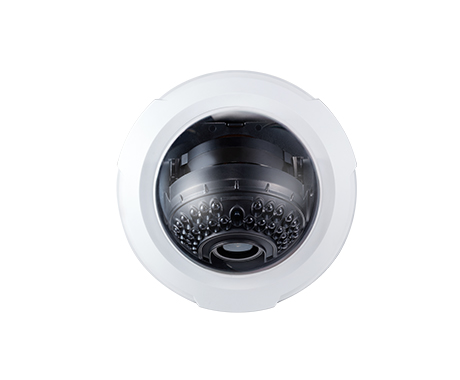

Full HD IR Dome Camera

• Eenvoudige installatie met DirectIP NVR
• Full HD (1080p) resolutie
• Gemotoriseerde vari-focal lens (f=3.3 – 10mm)
• Micro SD / SDHC / SDXC
• Two-way audio
• Alarm in / uit
• PoE (IEEE 802.3af Class 3), 12VDC
• Ondersteunt H.265 / H.264 codec
• Dag en nacht (ICR)
• True wide dynamic range (WDR)
• Weinig licht verbetering
• IR LED (Afstand : 20m)
• 3-assig mechanisch ontwerp voor installatie
• Ondersteunt ONVIF



Vergelijk product
Categorie: Tag:

Beschrijving

Video
Beeld Sensor 1/3″ CMOS
Max. Resolutie 1920 x 1080
Scanning Mode Progressive Scan
Lens type Gemotoriseerde Vari-focal
Brandpuntsafstand f=3.3 – 10mm
Opening F=1.3 – 2.5
Iris Control P-Iris
Kijkhoeken Wide : 93,9º(H), 50º(V), 111º(D)
Tele : 31,8º(H), 17,9º(V), 36,5º(D)
Pan/Tilt Range Pan: -176° ~ 176°, Tilt: 0° ~ 66°, Rotate: -90° ~ 90°
Min. Verlichting KLEUR : 0.1 lux @ F1.3
Z/W : 0 lux (IR LED aan)
S/N Ratio Meer dan 45dB
Dynamische Range 120dB (True WDR)
Electronische Shutter Snelheid Auto / Handmatig (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter( 1 ~ 1/5, 1/7.5, 1/15)
Dag & Nacht IR cut filter met automatische schakelaar
IR Afstand (LEDs) 20 m (28ea)
Beeldinstellingen Instelbare Exposure, Wit Balans, Scherpte
Digital Ruisonderdrukking Instelbaar 2DNR/3DNR
Backlight Compensatie Aan / Uit / HSBLC
Mirroring / Pivot Horizontaal / Verticaal / Pivot
Beeld Stabillisatie
De-fog Aan / Uit
Privacy Masker 8 Zones
Intelligent Video Video Motion Detectie, Active Tampering Alarm, Trip Zone
Video uit 1 BNC(Accessoire)
Netwerk
Video Compressie H.264(MP), M-JPEG, H.265
Intelligent Codec Ondersteund
Bitrate Control H.264 – CBR/ VBR, H.265 – CBR / VBR
Audio Compressie ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Ja
IP Camera Protocol DirectIP™ Modus : DirectIP
Compatibiliteit Modus : IDIS
ONVIF Profile S
Max. Frame Rate DirectIP™ Modus : 30ips : 1920 x 1080(WDR)
Compatibiliteit Modus : 60ips : 1920 x 1080
30ips : 1920 x 1080(WDR)
Supports Resolutie DirectIP™ Modus : 1920×1080, 1280×720, 704×480, 640×360, 352×240
Compatibiliteit Modus : 1920×1080, 1280×720, 704×480, 640×360, 352×240
Multi-Video Streaming DirectIP™ Modus : Quadruple streaming
Compatibiliteit Modus : Quadruple streaming
Netwerk Protocollen DirectIP™ Modus : Direct IP Protocol
Compatibiliteit Modus : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Beveiliging DirectIP™ Modus : SSL Encryptie
Compatibiliteit Modus : Multi-User Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryptie
Remote Access Client DirectIP™ Modus : DirectIP™ NVR connectie
Compatibiliteit Modus : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45(10/100/1000BASE-T)
Opnamesessie Buffer (NLTSrec) Ja (tot 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (tot 128GB)
Alarm & Event
Trigger Event Motion Detectie, Alarm in, Audio detection, Tampering, TripZone
Event Notificatie Remote S/W, Email (met plaatje)
Audio In/ Uit Line-in 1ea / Line-out 1ea
Alarm In / Uit Ingang 1ea / Uitgang 1ea
Omgeving
Vandaalbestendig
Outdoor Ready
Bedrijfstemperatuur -10°C ~ 50°C ( 14°F ~ 122°F)
*Opstarten boven 0°C (32°F)
Bedrijfsvochtigheid 0% ~ 90%
Elektrisch
Voeding 12VDC, PoE(IEEE 802.3af class 3)
Stroomverbruik 7,5W
Goedkeuring FCC, CE, KC
Mechanisch
Afmetingen (Ø x H) Ø155mm x 111,5mm (Ø6,11″ x 4,39″)
Gewicht 0,6 kg

Extra informatie

Camera: Opening

Camera: BLC / WDR

,

Recorder / Camera: Compressie

, ,

Camera: Dag & Nacht

Camera: Brandpuntsafstand

Camera: IR afstand

Camera: Lens type

Camera: Maximale resolutie

Camera: Outdoor

Camera: Montage

Downloads

Firmware
Laatste versie
Handleiding NL EN FR
Snelle gids
Installatie handleiding
Bedieningshandleiding
Datasheet NL EN FR
Versie 6.2
A&E specificaties NL EN FR
Architectural and Engineering Specifications
BIM
Bouwwerk Informatie Model

Afmetingen
