DC-C4212RX

Uitverkocht

1080p Full HD Fixed lens Power over Ethernet True Dag & Nacht met ICR Backlight Compensation True Wide Dynamic Range Infrarood

Full HD Micro Dome Camera

• Eenvoudige installatie met DirectIP NVR
• Full HD (1080p) resolutie
• Fixed-focal lens (f=2.8mm)
• True Wide Dynamic Range (WDR)
• PoE (IEEE 802.3af Class 1)
• Dag en nacht (ICR)
• IR LED (Afstand: 15m)
• 3-assig mechanisch ontwerp voor installatie
• Ondersteunt ONVIF

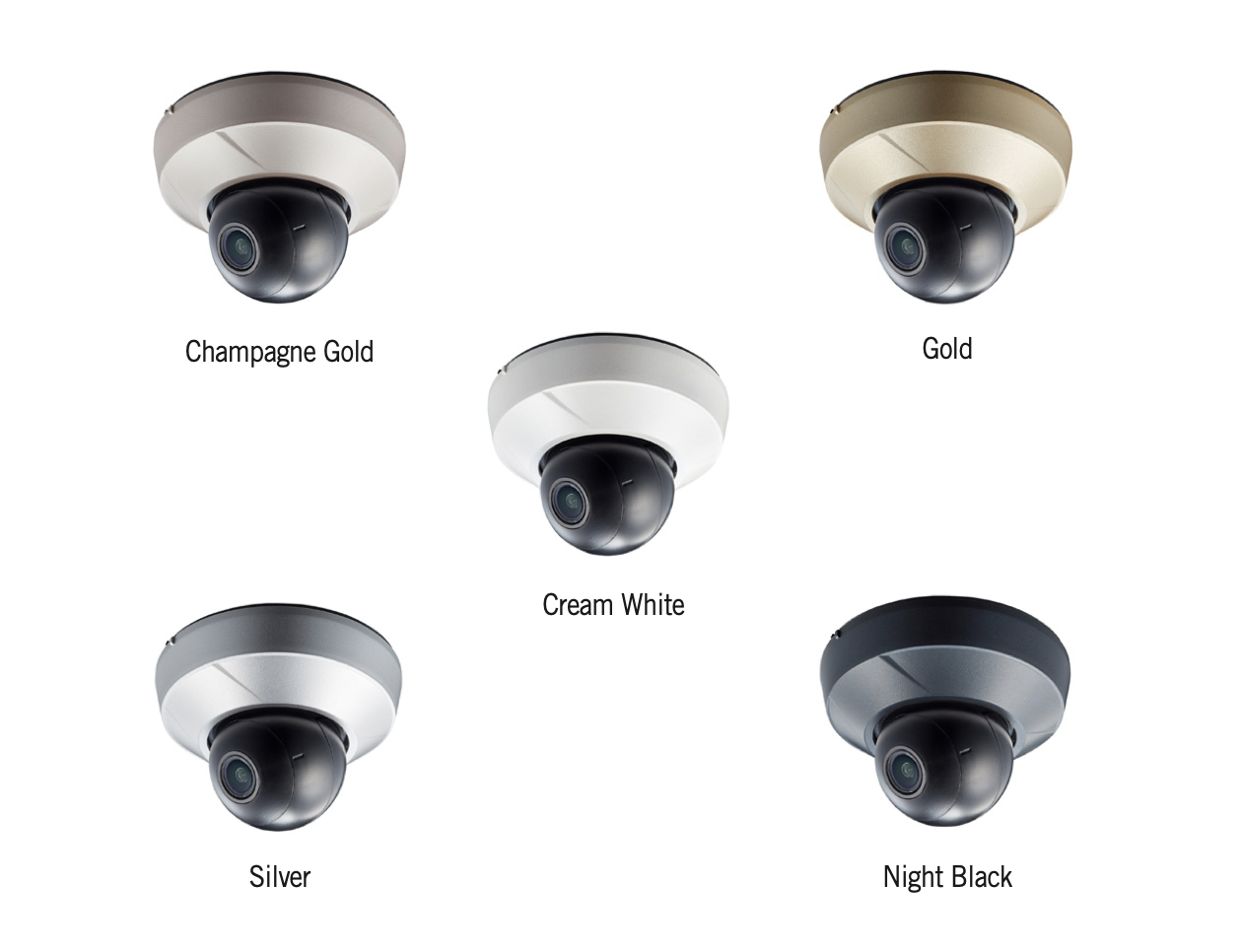

• Met diverse kleuropties
Vergelijk product
Categorie: Tag:

Beschrijving

Video
Beeld Sensor 1/2.8″ CMOS
Max. Resolutie 1920 x 1080
Scanning Mode Progressive Scan
Lens type Fixed-focal
Brandpuntsafstand f=2.8mm
Opening F2.0
Iris Control Fixed Iris
Kijkhoeken 113,74º(H), 61,5º(V), 134,5º(D)
Pan/Tilt bereik Pan: -170° ~ 170°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90°
Min. Verlichting KLEUR : 0.1 lux @ F2.0
Z/W : 0 lux (IR LED aan)
S/N Ratio Meer dan 45dB
Dynamisch bereik 120dB (True WDR)
Elektronische Shutter Snelheid Auto / Handmatig (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter( 1 ~1/5, 1/7.5, 1/15)
Dag & Nacht IR cut filter met automatische schakelaar
IR Afstand (LED’s) 15m (1ea)
Beeld instelling Instelbare Exposure, Witbalans, Scherpte
Digitale Ruisonderdrukking Instelbaar 2DNR/3DNR
Backlight Compensatie Aan / Uit
Beeldstabilisatie
De-fog Aan / Uit
Privacy Masker 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Uit
Netwerk
Video Compressie H.264(MP), M-JPEG, H.265
Intelligent Codec Ondersteund
Bitrate Control H.264 – CBR/ VBR, H.265 – CBR / VBR
Audio Compressie
Two-way Audio
IP Camera Protocol DirectIP v2.0, ONVIF
Max. Frame Rate DirectIP™ Modus : 30ips : 1920 x 1080 (WDR)
Ondersteunde Resolutie DirectIP™ Modus : 1920×1080, 1280×720, 704×480, 640×360, 352×240
Multi-Video Streaming DirectIP™ Modus : Quadruple streaming
Netwerk Protocollen Direct IP Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Beveiliging SSL Encryptie, Multi-User Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryptie
Remote Access Client DirectIP™ Modus : Uit /aan
-Motion Adaptive Transmission (MAT) DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45(10/100BASE-T)
Opnamesessie Buffer (NLTSrec) Ja (tot 10MB)
Edge Opslag
Alarm & Event
Trigger Event Motion Detection, Tampering, TripZone
Event Notificatie Remote S/W, Email (met plaatje)
Audio In / Uit
Alarm In / Uit
Omgeving
Vandaalbestendig
Outdoor Ready
Bedrijfstemperatuur -10°C ~ 50°C ( 14°F ~ 122°F)
*Opstarten boven 0°C (32°F)
Bedrijfsvochtigheid 0% ~ 90%
Elektrisch
Voeding PoE(IEEE 802.3af class 1)
Stroomverbruik PoE: IEEE 802.3af (Class 1), 3,3W
Goedkeuring FCC, CE, KC
Mechanisch
Afmetingen (Ø x H) Ø86mm x 58mm
Gewicht 105 g

Extra informatie

Camera: Opening

Camera: BLC / WDR

,

Recorder / Camera: Compressie

, ,

Camera: Dag & Nacht

Camera: Brandpuntsafstand

Camera: IR afstand

Camera: Lens type

Camera: Maximale resolutie

Camera: Montage

Downloads

Firmware
Laatste versie
Handleiding NL EN FR
Snelle gids
Installatie handleiding
Bedieningshandleiding
Datasheet NL EN FR
Laatste versie
A&E specificaties NL EN FR
Architectural and Engineering Specifications
BIM
Bouwwerk Informatie Model

Afmetingen

DC-C4212RX afmetingen
