TC-E1212WR

Out of stock

1080p Full HD Fixed lens Vandaalbestendig IP66 weerbestendig True Dag & Nacht met ICR

Backlight Compensation HSBLC Infrarood

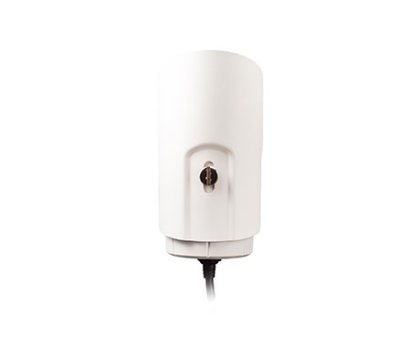

HD-TVI Full HD Vandal-Resistant IR Bullet Camera

ㆍFull HD (1080p) resolution
ㆍFixed-focal Lens (f=3.6mm)
ㆍDay&Night (ICR)
ㆍWDR (Wide Dynamic Range: 15fps)
ㆍMotion Detection
ㆍDe-fog
ㆍHSBLC
ㆍVandal Proof / IP66 supports
ㆍOSD Control over Coax

🔎    Vergelijk product
Category:

Description

Video
Image Sensor 1/2.8″ SONY 2Mega Exmor CMOS Sensor
Effective pixels 1984(H) X 1105(V), 2.19M Pixels
Total pixels 2000(H) X 1121(V), 2.24M Pixels
Max. Resolution 1920X1080
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length f = 3.6mm
IRIS Control Fixed Iris
Angular Field of View 92.6°(H), 54.6°(V), 120.0°(D)
Min. illumination COLOR : 0.9 Lux @ F1.8
B/W : 0 Lux (IR LED ON)
S/N Ratio More than 50dB
Electronic Shutter Speed AUTO / Manual(1/30,1/25Sec ~ 1/30000Sec) / FLICKER
Day/Night YES(ICR)
IR Distance (LEDs) 10m (24ea)
Video Out 1 HD BNC , 1 SD BNC
Function
AGC 0 ~ 20 Level Adjustable
Brightness 0 ~ 20 Level Adjustable
Sens-UP OFF / x2 ~ x32
WDR(Wide Dynamic Range) OFF / ON (Low,Middle,High / 15 Frame)
Backlight Compensation(BLC) OFF/ON
HSBLC 1 ~ 20 Level Adjustable(ALL DAY/NIGHT ONLY)
ACE(D-WDR/ATR-EX) OFF/LOW/MIDDLE/HIGH
Motion Detection OFF/ON (4 Zone)
Privacy Masking OFF/ON (16 Zone)
Day & Night Auto(AGC)/Color/B&W/EXTERN
Smart -IR(IR OPTIMIZER) 0~20 Level Adjustable
White Balance AUTO(2,500K ~ 9,500K) / AWB(1,800K ~ 10,500K) / AWC→Set / Manual
Digital Noise Reduction 2D 3DNR(OFF/LOW/MIDDLE/HIGH)
Mirror MIRROR,V-FLIP
D-ZOOM(EZOOM) X1 ~ X8
Sharpness 0~20 Level Adjustable
De-fog OFF/ON
GAMMA Correction r = O.45 ~ 0.65
Lens Shading(LSC) OFF/ON
Language ENG / CHN / CHN(S) / JPN / KOR
Environmental
Out-door Ready IP66
Storage Temperature -20℃ ~ 60℃ (-4℉ ~ 140℉)
(Humidity : 0% ~ 95%)
Operating Temperature -10℃ ~ 50℃ (14℉ ~ 122℉)
(Humidity : 0% ~ 90%)
Electrical
Power Source DC 12V
Power Consumption 6W
Mechanical
Dimensions (W x H x D) 68mm x 65.5mm x 136.7mm (2.68″ x 5.58″ x 5.39″)

Additional information

Camera: BLC / WDR

, ,

Camera: Day & Night

Camera: IR distance

Camera: Lens type

Camera: Maximum resolution

Camera: Outdoor

Camera: Mounting

,

Camera: Focal length

Downloads

Firmware
Latest Version
Manual NL EN FR
Quick Guide
Installation Manual
Operating Manual
Datasheet NL EN FR
Version 6.2
A&E specifications NL EN FR
Architectural and Engineering Specifications
BIM
Building Information Model

Dimensions

Afmeting DC-E1 serie
