DC-Y1513W

Rupture de stock

5 MegaPixel Fisheye lens Duplex audio Vandaalbestendig IP66 weerbestendig Power over Ethernet

True Dag & Nacht met ICR Backlight Compensation HSBLC

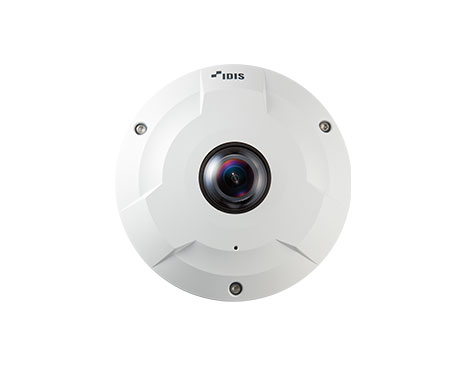

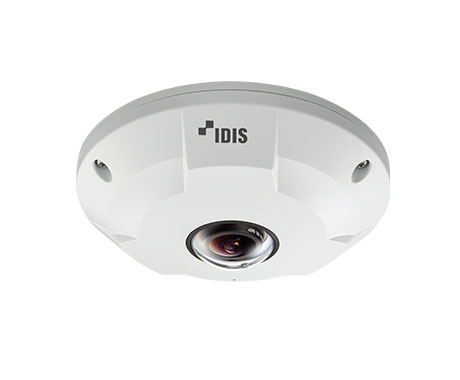

5MP Vandaalbestendige Fisheye Camera

ㆍEenvoudige installatie met DirectIP NVR
ㆍ5MP (2560 x 2048) resolutie
ㆍFixed-focal lens (f=1.45 mm)
ㆍMicro SD/SDHC/SDXC
ㆍTwo-way audio
ㆍAlarm in/uit
ㆍVandaalbestendig/IP66
ㆍPoE (IEEE 802.3af class 3), 12V DC
ㆍDag&nacht (ICR)
ㆍDiverse weergave composities, 6 de-warping weergave modus
ㆍOndersteunt ONVIF

Comparer le produit
Catégorie :

Description

Video
Image Sensor1/1.8″ CMOS
Max. Resolution2560 x 2048
Scanning ModeProgressive Scan
Lens typeFixed-focal
Focal Lengthf=1.45mm
ApertureF2.2
Iris ControlFixed Iris
Angular Field of View180º(H), 180º(V), 180º(D)
Pan/Tilt/Zoom
Min. IlluminationColor : 0.8 lux @ F2.2
B/W : 0.003 lux @ F2.2
S/N Ratiomore than 45dB
Dynamic Rangemore than 70dB (90dB@digital WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter(1/7.5,1/15)
Day & NightIR cut filter with auto switch
IR Distance (LEDs)
Image SettingConfigurable Exposure, White Balance, Sharpness
Digital Noise ReductionConfigurable 2DNR/3DNR
Backlight CompensationOn / Off / HSBLC
Image Stabilizer
Privacy Masking16 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Viewing Composition1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Out
Network
Video CompressionH.264(MPEG-4 Part 10/AVC), M-JPEG
Bitrate ControlH.264 – VBR
Max. Frame Rate30fps : 2560 x 2048
Audio CompressionG.726, G.711
Two-way AudioYes
IP Camera ProtocolDirectIP™ Mode : DirectIP
Compatibility Mode : IDIS
ONVIF Profile S
Supports ResolutionDirectIP™ Mode : 2560×2048, 1536×1536, 512x 512
Compatibility Mode : 2560×2048, 1280×1024, 640×512, 2048×2048, 2048 x 1024, 1536×1536, 1024×1024, 1024 x 512, 512×512
Multi-Video StreamingDirectIP™ Mode : Quadruple streaming
Compatibility Mode : Hextuple streaming
Network ProtocolsDirectIP™ Mode : Direct IP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
SecurityDirectIP™ Mode : SSL Encryption
Compatibility Mode : Multi-User Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access ClientDirectIP™ Mode : DirectIP™ NVR connection
Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45(10/100/1000BASE-T)
Edge Storagemicro SD/SDHC/SDXC
Alarm & Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, TripZone
Event Buffering (Pre & Post)yes (up to 100MB)
Event NotificationRemote S/W, Email (with Image)
Audio In/ OutLine-in 1ea / Line-out 1ea
Alarm In / OutInput 1ea / Output 1ea
Environmental
Vandal ResistanceYes
Out-door ReadyIP66
Operating Temperature-10°C ~ 50°C ( 14°F ~ 122°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE(IEEE 802.3af class 3)
Power Consumption7.56W
ApprovalFCC, CE, KC
Mechanical
Dimensions (Ø x H)Ø155.0mm x 48.3mm (Ø6.10″ x 1.90″)
Weight0.59 kg (1.31 lb)

Informations complémentaires

Enregistreur / Caméra: Compression

Caméra: Résolution maximale

Caméra: Type de lentille

Caméra: Distance focale

Caméra: Jour & Nuit

Caméra: IR distance

Caméra: BLC / WDR

,

Caméra: Extérieure

Caméra: Montage

Téléchargements

Firmware
Laatste versie
HandleidingNLENFR
Snelle gids
Installatie handleiding
Bedieningshandleiding
DatasheetNLENFR
Versie 6.2
A&E specificatiesNLENFR
Architectural and Engineering Specifications
BIM
Bouwwerk Informatie Model

Dimensions

Afmetingen DC-Y serie
